Product Description

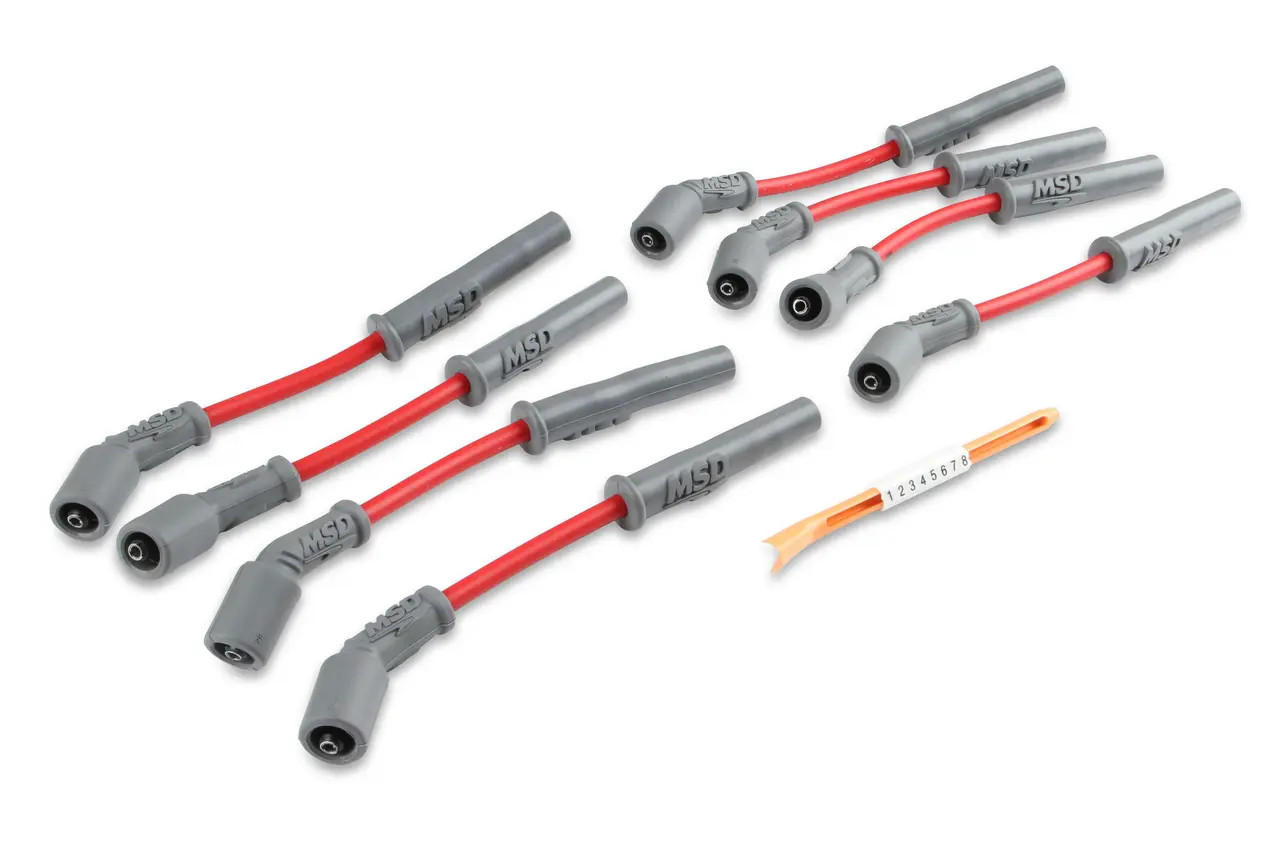

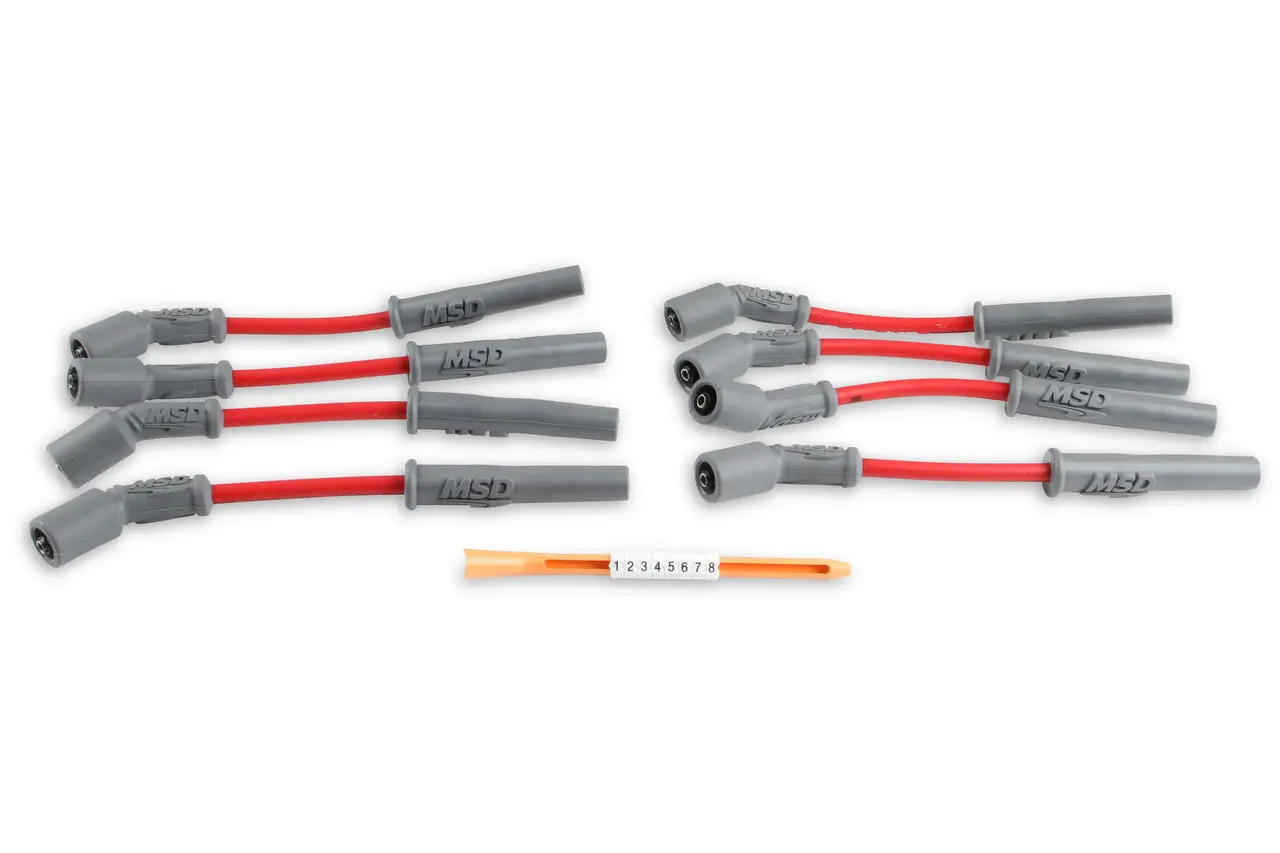

MSD Super Conductor Spark Plug Wire Set Red 8.5mm for LS1 LS2 LS3 L99 L76 L77 Camaro Firebird Corvette | 32819
Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire, incredibly low resistance without electronic interference! In a single 8 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps, one for the sleeve of the wire and another separate crimp to grasp the conductor. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps, one for the sleeve of the wire and another separate crimp to grasp the conductor.
Key Features & Benefits:
- Designed specifically for GM LS vehicle applications
- Ultra-low resistance (40-50 ohms per foot) for maximum spark energy
- 8.5mm wire diameter for improved durability and performance
- Heavy duty silicone insulation for heat protection
- Excellent EMI suppression for stable ignition signal
- Factory style fit with multi-anlge boots for easy installation
- MSD performance and reliability
Specifications:
- Wire diameter: 8.5mm
- Wire length: 8"
- Resistance: 40-50 ohms per foot
- Core: Copper alloy conductor

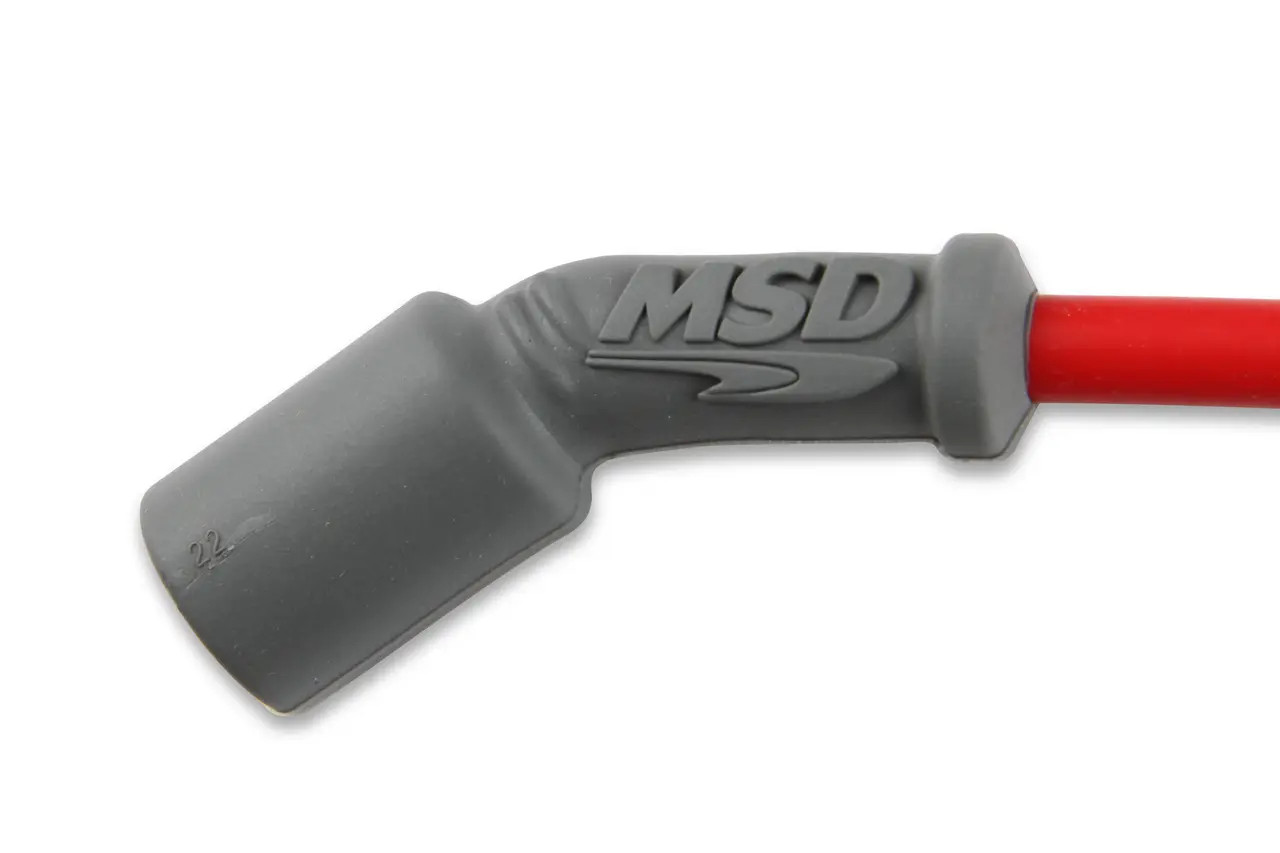

- Boot Material: Silicone
- Spark Plug Boot Angle: Multi-angle
- Spark Plug Boot Degree: 45 degree
- Coil End Boot Color: Grey
- Spark Plug End Boot Color: Grey
Fitment - Fits GM LS-based vehicle and engines including:
- 1997-2013 Corvette
- 1998-2002 F-Body
- 2010-2015 Camaro
- 2004-2015 CTS-V
- 2004-2006 Pontiac GTO
- 2014-2017 Chevy SS
- 2011-2017 Chevy SS
- 4.8L, 5.3L, 6.0L LS Engines
- Any LS-swap application using car-style coil brackets
Includes:
- MSD Super Conductor Spark Plug Wire Set (Red)
Notes:
- Direct fit for truck-style LS coil locations
- Will not fit car-style LS applications with different coil mounting positions
- Wire separators not included
