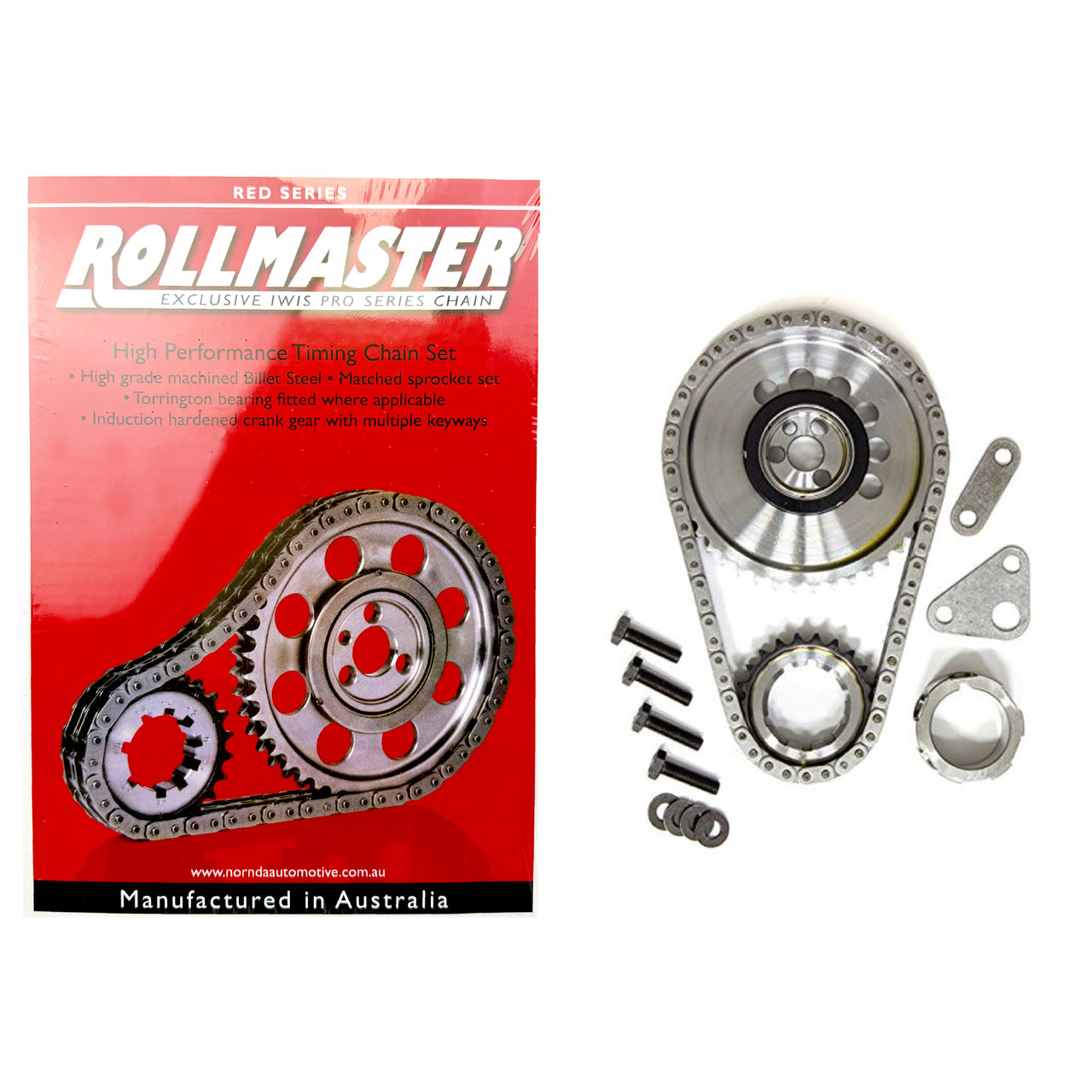

Rollmaster Red Series Adjustable Double Roller Timing Chain Set | 3-Bolt 58x /4x for LS Engines - CS1195
Timing cover will need to be clearanced when using a double-roller timing chain set-up
Oil Pump will need to be spaced with included spacers
Fits 2007 Later LS - 4.8L 5.3L 6.0L 6.2L LS3 L99 L76 LSA LC9 L92 L96
Rollmaster's Red Series CS1195 Timing Chain Set is a premium double roller timing set designed for high-performance and racing LS applications. Featuring a high strength, German made IWIS Pro Series double roller chain, billet nitrated steel sprockets, and a 9-keyway adjustable crank gear, this timing set delivers exceptional strength and precise timing.
The billet steel crank and cam sprockets are nitrated for increased wear resistance, while the Torrington thrust bearing helps reduce friction between the sprocket and camshaft retainer plate.
This kit also includes the required oil pump drive gear and oil pump spacers needed for installation. The timing cover will also need to be clearanced when using a double-roller timing chain set-up.
Features:
- IWIS Pro Series Double Roller Timing Chain
- 58x / 4x Cam Signal Design - Required for 2007+ LS platforms
- Billet Steel Nitrated Camshaft & Crankshaft Sprockets
- 3-Bolt Camshaft Pattern
- Torrington Bearing
- 9 Keyway Crank Sprocket (for up to 8 degrees of advance or 8 degrees of retard in 2 degree increments)
- Oil Pump Drive Gear Included
- Oil Pump Spacers Included
Installation Notes:
- Requires spacing the oil pump forward using the supplied spacers
- Requires minor grinding/clearancing of the factory timing cover for double roller chain clearance
- Not a direct replacement for factory single row timing sets
Compatibility:
- Designed for LS engines using 3-bolt camshafts and 58X crankshaft reluctor wheels requiring a 4x camshaft signal. Also works with Gen 3 LS engines that use a rear block-mounted cam sensor.
Applications:
Fits 2007-later LS-based 4.8L, 5.3L, 6.0L, and 6.2L engines equipped with 3-bolt camshafts. Common applications include:
- Chevrolet: Avalanche, Camaro, Caprice, Colorado, Corvette, Express, Silverado, SS, Suburban, Tahoe, Trailblazer
- GMC: Canyon, Envoy, Savana, Sierra, Yukon, Yukon XL
- Cadillac: CTS-V, Escalade
- Buick: Rainier
- Hummer: H2, H3, H3T
- Pontiac: G8
- Saab: 9-7X
