Product Description

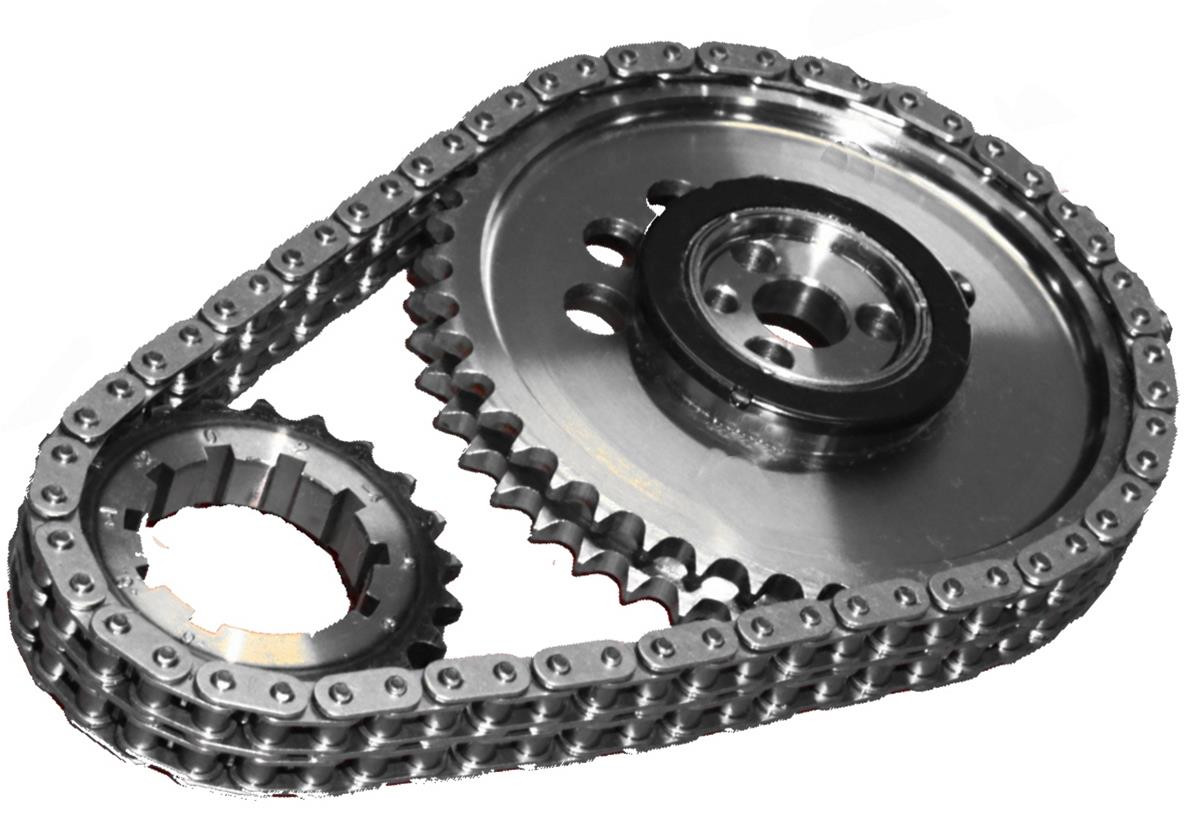

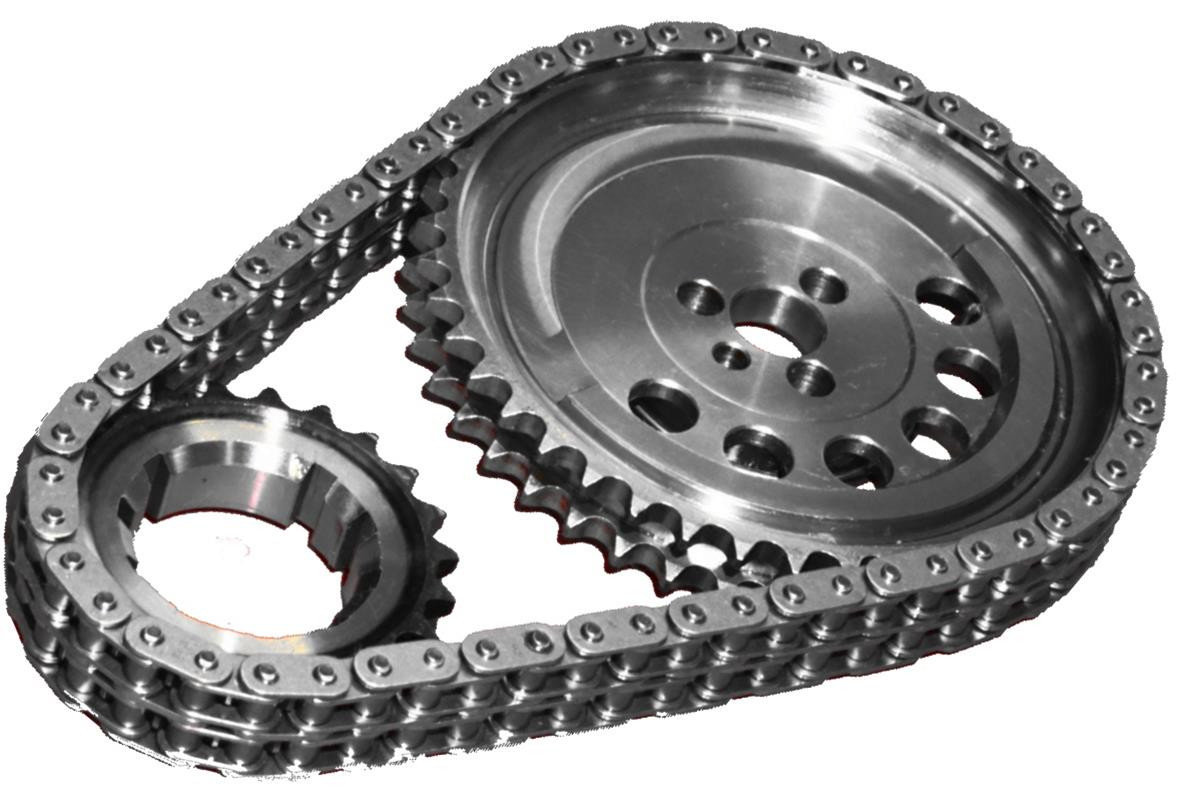

Rollmaster Red Series Adjustable Double Roller Timing Chain Set | 3-Bolt 24x /1x for Gen 3 LS Engines - CS1185
Timing cover will need to be clearanced when using a double-roller timing chain set-up
Oil Pump will need to be spaced with included spacers
Fits 1997-2007 Gen 3 LS Engines - 4.8L 5.3L 5.7 6.0L LS1 LS2 LS6 LQ4 LQ9 LR4 LM7 L59 LM4 L33
Rollmaster's Red Series CS1185 Timing Chain Set is a premium double roller timing set designed for high-performance and racing LS applications. Featuring a high strength, German made IWIS Pro Series double roller chain, billet nitrated steel sprockets, and a 9-keyway adjustable crank gear, this timing set delivers exceptional strength and precise timing.
The billet steel crank and cam sprockets are nitrated for increased wear resistance, while the Torrington thrust bearing helps reduce friction between the sprocket and camshaft retainer plate.

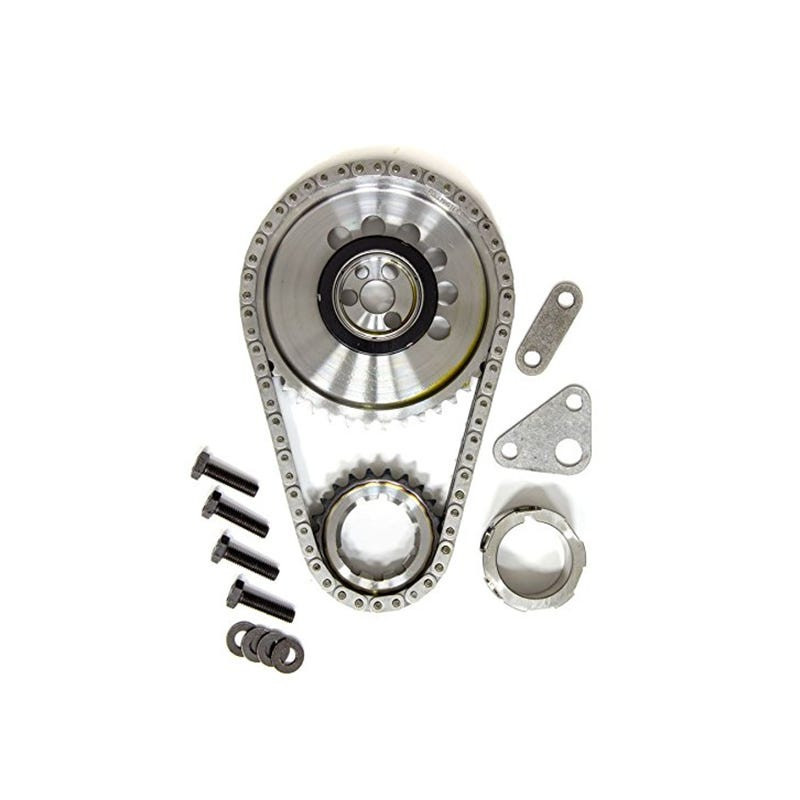

This kit also includes the required oil pump drive gear and oil pump spacers needed for installation. The timing cover will also need to be clearanced when using a double-roller timing chain set-up.
Features:
- IWIS Pro Series Double Roller Timing Chain
- 24x / 1x Cam Signal Design - Required for 1997–2007 LS platforms
- Billet Steel Nitrated Camshaft & Crankshaft Sprockets
- 3-Bolt Camshaft Pattern
- Torrington Bearing
- 9 Keyway Crank Sprocket (for up to 8 degrees of advance or 8 degrees of retard in 2 degree increments)
- Oil Pump Drive Gear Included
- Oil Pump Spacers Included
Installation Notes:
- Requires spacing the oil pump forward using the supplied spacers
- Requires minor grinding/clearancing of the factory timing cover for double roller chain clearance
- Not a direct replacement for factory single row timing sets
Compatibility:
- LS engines using 3-bolt camshafts and 24X crankshaft reluctor wheels which require a 1x camshaft signal. This sprocket works both with rear mounted camshaft position sensors (Gen 3 blocks), and timing cover mounted 1x Cam sensors (early LS2 and Envoy/Trailblazer 5.3L engines).
Key Fitments (Gasoline V8 Models Only)
- Buick Rainier: 2004–2006
- Cadillac CTS: 2004–2005
- Cadillac Escalade: 2002–2006
- Chevrolet Avalanche 1500: 2002–2006
- Chevrolet Camaro: 1998–2002
- Chevrolet Corvette: 1997–2005
- Chevrolet Express 1500: 2003–2007
- Chevrolet Express 2500: 2003–2007
- Chevrolet Express 3500: 2003–2007
- Chevrolet Impala: 2006
- Chevrolet Monte Carlo: 2006
- Chevrolet Silverado 1500: 1999–2006
- Chevrolet Silverado 1500 Classic: 2007
- Chevrolet Silverado 2500: 1999–2006
- Chevrolet Silverado 2500 Classic: 2007
- Chevrolet Silverado 3500: 2001–2006
- Chevrolet Silverado 3500 Classic: 2007
- Chevrolet SSR: 2003–2006
- Chevrolet Suburban 1500: 2000–2006
- Chevrolet Suburban 2500: 2000–2006
- Chevrolet Tahoe: 2000–2006
- Chevrolet Trailblazer: 2003–2006
- GMC Envoy: 2003–2006
- GMC Savana 1500: 2003–2007
- GMC Savana 2500: 2003–2007
- GMC Savana 3500: 2003–2007
- GMC Sierra 1500: 1999–2006
- GMC Sierra 1500 Classic: 2007
- GMC Sierra 2500: 1999–2006
- GMC Sierra 2500 Classic: 2007
- GMC Sierra 3500: 2001–2006
- GMC Sierra 3500 Classic: 2007
- GMC Yukon: 2000–2006
- GMC Yukon XL 1500: 2000–2006
- GMC Yukon XL 2500: 2000–2006
- Hummer H2: 2003–2007
- Isuzu Ascender: 2003–2006
- Pontiac Firebird: 1998–2002
- Pontiac Grand Prix: 2005–2006
- Pontiac GTO: 2004–2006
- Saab 9-7X: 2005–2006
