Product Description

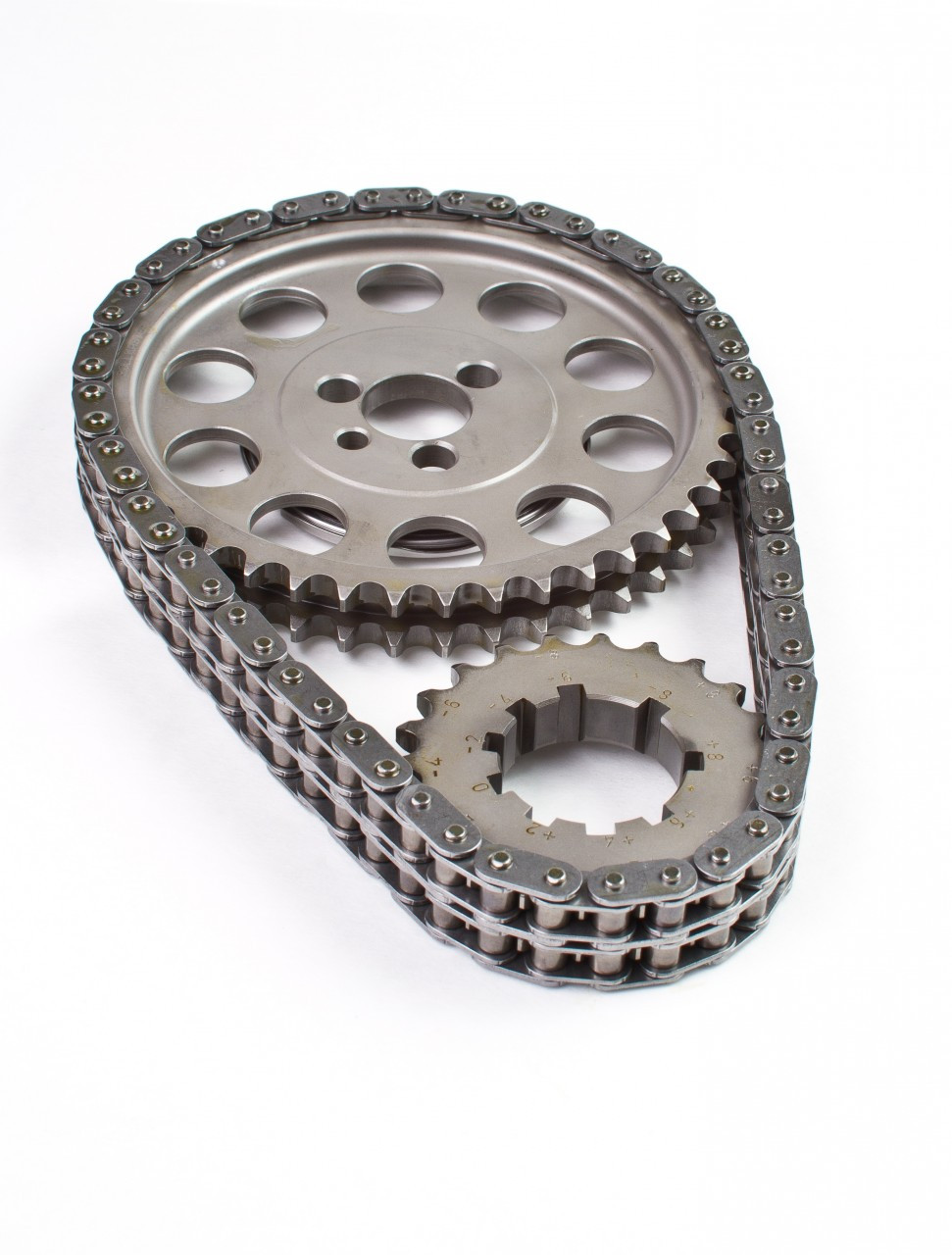

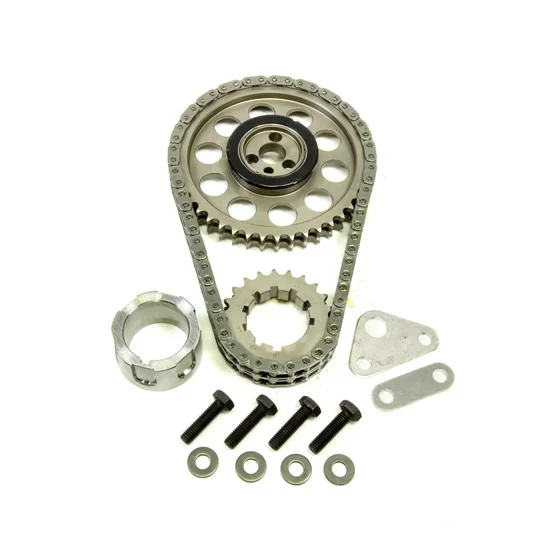

Rollmaster Gold Series Adjustable Double Roller Timing Chain Set for Gen 3 LS Engines - CS1160
Fits 1999-2007 Gen 3 LS Engines - LS1 LS6 LQ4 LQ9 LM7 L33 L59 LR4 LM4
Rollmaster's Gold Series CS1160 Timing Chain Set is a premium double roller timing set designed for high-performance and racing LS applications. Featuring a high strength, German made IWIS Pro Series double roller chain, billet nitrated steel sprockets, and a 9-keyway adjustable crank gear, this timing set delivers exceptional strength and precise timing.
The billet steel crank and cam sprockets are nitrated for increased wear resistance, while the Torrington thrust bearing helps reduce friction between the sprocket and camshaft retainer plate.
This kit also includes the required oil pump drive gear and oil pump spacers needed for installation. The timing cover will also need to be clearanced when using a double-roller timing chain set-up.
Features:
- IWIS Pro Series Double Roller Timing Chain
- Billet Steel Nitrated Camshaft & Crankshaft Sprockets
- 3-Bolt Camshaft Pattern
- Torrington Bearing
- 9 Keyway Crank Sprocket (for up to 8 degrees of advance or 8 degrees of retard in 2 degree increments)
- Oil Pump Drive Gear Included
- Oil Pump Spacers Included
- For Use on Gen 3 LS Applications (where the cam sensor is located at the rear of the block)
Installation Notes:
- Requires spacing the oil pump forward using the supplied spacers
- Requires minor grinding/clearancing of the factory timing cover for double roller chain clearance
- Not a direct replacement for factory single row timing sets
Key Fitments (Gasoline V8 Models)
- BUICK RAINIER 2004
- CADILLAC CTS-V 2004-2005
- CADILLAC ESCALADE 2002-2006
- CHEVROLET AVALANCHE 1500 2002-2006
- CHEVROLET CAMARO 1998-2002
- CHEVROLET CORVETTE 1997-2004
- CHEVROLET EXPRESS 1500 2003-2007
- CHEVROLET EXPRESS 2500 2003-2007
- CHEVROLET EXPRESS 3500 2003-2007
- CHEVROLET SILVERADO 1500 1999-2006
- CHEVROLET SILVERADO 1500 CLASSIC 2007
- CHEVROLET SILVERADO 2500 1999-2006
- CHEVROLET SILVERADO 2500 CLASSIC 2007
- CHEVROLET SILVERADO 3500 2001-2006
- CHEVROLET SILVERADO 3500 CLASSIC 2007
- CHEVROLET SSR 2003-2004
- CHEVROLET SUBURBAN 1500 2000-2006
- CHEVROLET SUBURBAN 2500 2000-2006
- CHEVROLET TAHOE 2000-2006
- CHEVROLET TRAILBLAZER 2003-2004
- GMC ENVOY 2003-2004
- GMC SAVANA 1500 2003-2007
- GMC SAVANA 2500 2003-2007
- GMC SAVANA 3500 2003-2007
- GMC SIERRA 1500 1999-2006
- GMC SIERRA 1500 CLASSIC 2007
- GMC SIERRA 2500 1999-2006
- GMC SIERRA 2500 CLASSIC 2007
- GMC SIERRA 3500 2001-2006
- GMC SIERRA 3500 CLASSIC 2007
- GMC YUKON 2000-2006
- GMC YUKON XL 1500 2000-2006
- GMC YUKON XL 2500 2000-2006
- HUMMER H2 2003-2007
- PONTIAC FIREBIRD 1998-2002
- PONTIAC GTO 2004
