Product Description
ICT Billet Starter Bolt Kit for LS Engines – 3-Piece – 551681
Fits 1999–2013 LS-Based 4.8L, 5.3L, 5.7L, 6.0L and 6.2L Engines – L96 Applications Through 2019

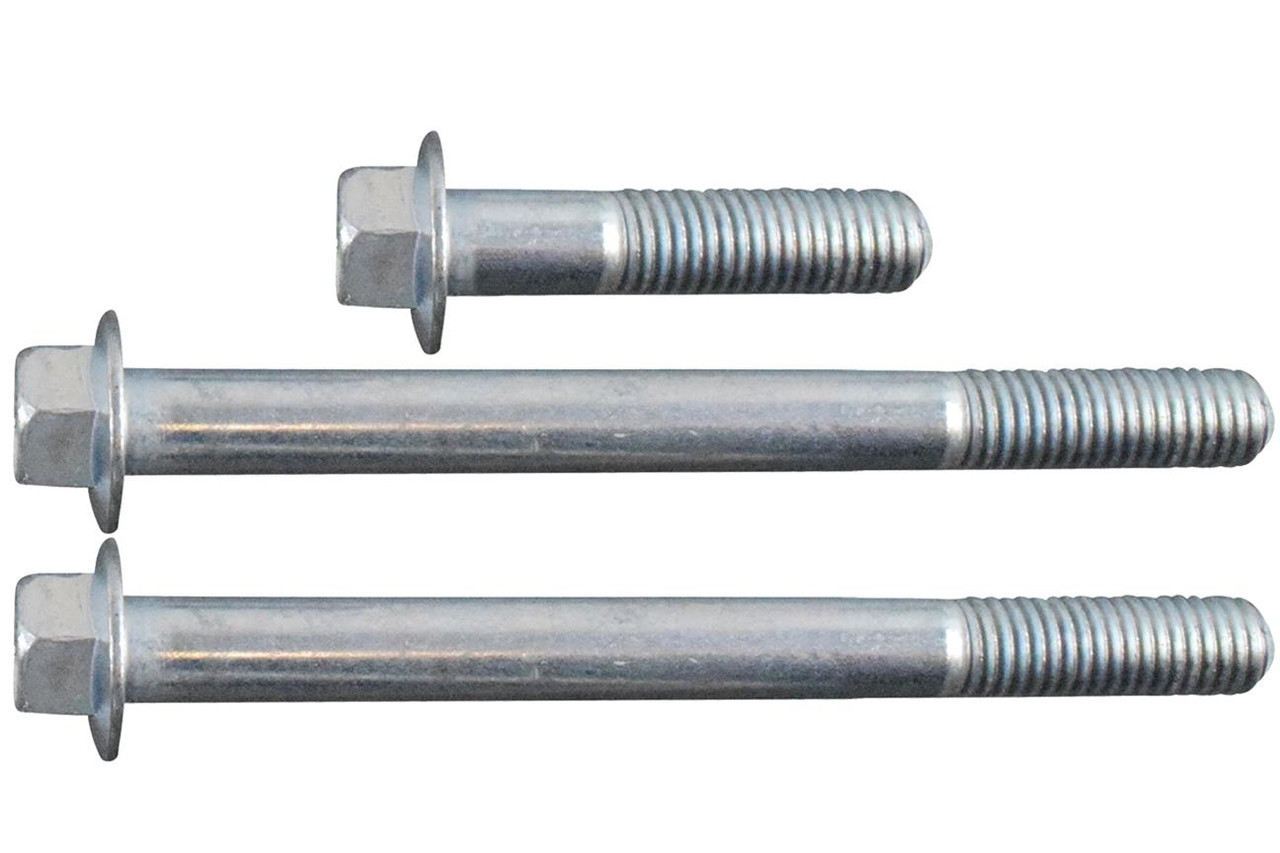

Secure a compatible factory-style LS starter with ICT Billet starter bolt kit 551681. The kit includes two long bolts and one short bolt, providing the hardware needed for early LS car starters that use one long and one short bolt or later car and truck starters that require two long bolts.
Key Features & Benefits
- Complete Three-Bolt Kit: Includes two long starter bolts and one short starter bolt in a single package. This combination supplies both bolt-length configurations used with compatible factory-style, two-bolt-pattern LS starters.
- Early and Late LS Starter Compatibility: Supports early LS car applications that use one long bolt and one short bolt, along with later car and truck applications that use two long bolts. Install only the two bolts required by the starter configuration.
- Grade 10.9 Steel Construction: The supplied starter bolts are manufactured from heavy-duty Grade 10.9 steel. Their application-specific design provides the correct hardware style for securing compatible factory-style LS starters with a two-bolt mounting pattern.
- JIS Flange-Head Design: Each bolt uses a JIS-style flange head and a clear zinc coating. The integrated flange-head configuration matches the supplied starter-bolt design while the clear zinc finish gives the steel hardware a clean appearance.
- Made in the USA: The bolts included in ICT Billet kit 551681 are made in the USA. The kit provides a convenient replacement hardware solution for compatible 4.8L, 5.3L, 5.7L, 6.0L and 6.2L LS-based engine applications.
Notes
- M10 starter-bolt torque specification: 37 lb-ft.
Key Fitments
- 1999–2013 LS-based 4.8L, 5.3L, 5.7L, 6.0L and 6.2L engines
- L96 6.0L applications through 2019
- Factory-style LS starters using two long bolts or one long bolt and one short bolt
- LS1, LS2, LS3, LS6, L99, LSA, L92, L9H, L94, L76, L77, LY6, L96, LFA, LZ1, LY5, LMG, LMF, LH6, LC9, LY2, L20, L33, LQ4, LQ9, LR4, LM7, L59, LS4, LH8 and LH9
