Product Description

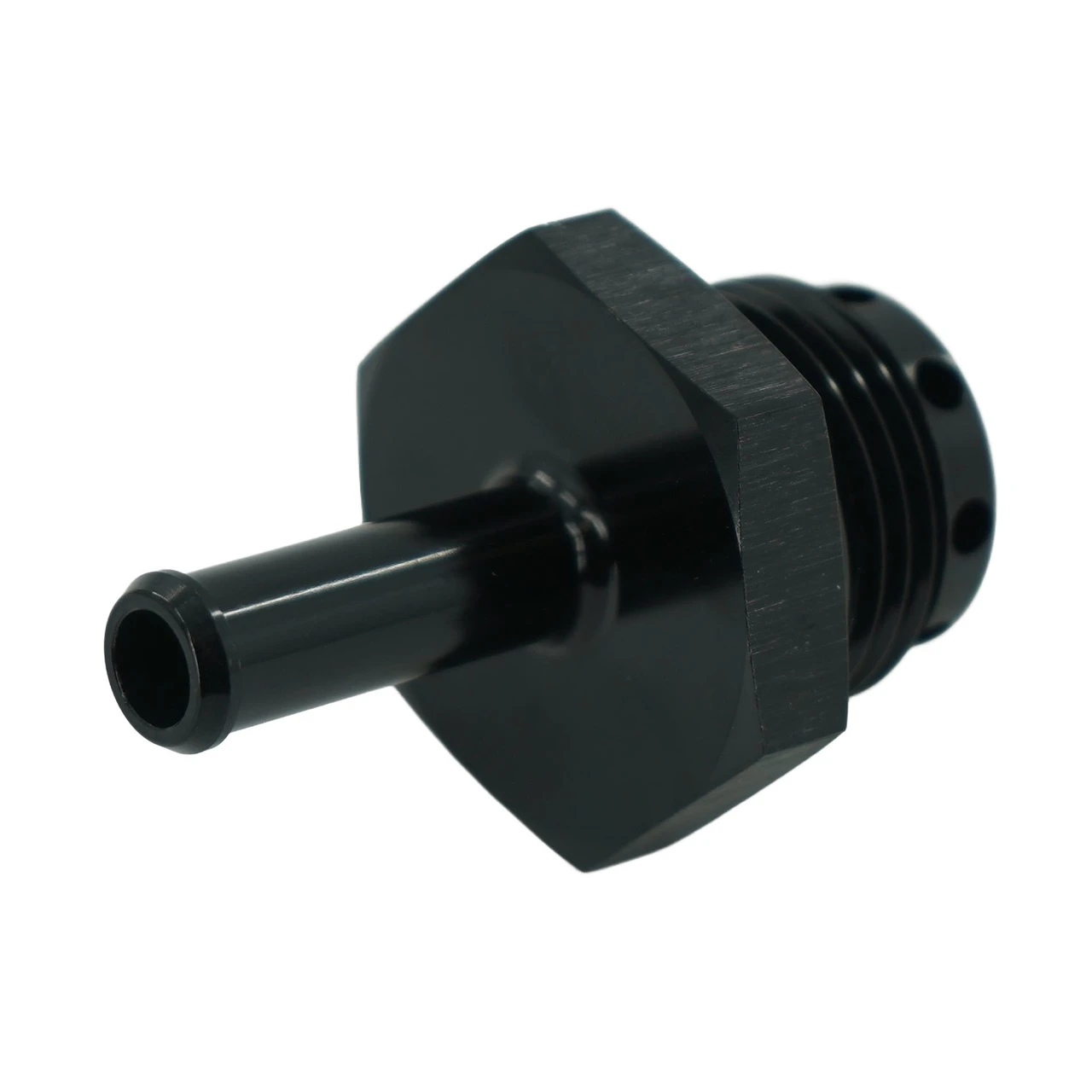

Brian Tooley Racing BTR Baffled -12 ORB Breather Adapter to 3/8" Hose Barb - Black
Straight Baffled -12 ORB Breather Adapter with 3/8" Hose Barb for Valve Cover Catch Can & Crankcase Ventilation Systems
Add extra oil-control support to your valve cover breather system with the Brian Tooley Racing BTR Baffled -12 ORB Breather Adapter to 3/8" Hose Barb. This straight breather adapter threads into a compatible -12 ORB valve cover port and transitions to a 3/8" hose barb for catch can, breather, and crankcase ventilation plumbing. An integrated baffle positioned behind the -12 ORB male end helps limit liquid carryover before vapors enter the connected hose and catch can system.
Key Features & Benefits
- Integrated Baffle at the Valve Cover Port: Brian Tooley Racing places a baffle directly behind the -12 ORB male end to add separation where vapors leave the valve cover. This gives compatible crankcase ventilation systems an added layer of oil-control support before vapors reach the attached hose or catch can.
- Useful When Internal Valve Cover Baffles Cannot Be Used: This BTR breather adapter is an effective option when an internal valve cover baffle cannot be retained because of rocker, valvetrain, or clearance limitations. It can also be used where an engine builder wants additional baffling to help reduce the amount of liquid reaching the catch can.
- Converts -12 ORB to a 3/8" Hose Barb Outlet: The adapter uses a -12 ORB male connection for compatible valve cover ports and a 3/8" hose barb outlet for breather plumbing. This compact layout provides a clean transition for smaller-diameter catch can hoses, vent hoses, and other compatible crankcase ventilation routing.
- Straight Fitting Configuration: The straight fitting design creates a direct hose exit from the valve cover port for applications where a simple, linear routing path is preferred. This can help create a clean installation on engine bays using catch cans, remote breather tanks, or other organized valve cover vent layouts.
- Brian Tooley Racing Aerospace-Grade Aluminum Construction: Brian Tooley Racing constructs this BTR fitting from aerospace-grade aluminum and applies a black anodized brushed finish. The black finish pairs cleanly with BTR valve covers, black AN fittings, braided hose assemblies, catch cans, and other billet engine bay components.
Specs
- Brand: Brian Tooley Racing
- Product Type: Baffled -12 ORB Breather Adapter to 3/8" Hose Barb
- Fitting Style: Straight
- End 1: -12 ORB male
- End 2: 3/8" hose barb
- Baffle Location: Behind the -12 ORB male end
- Material: Aerospace-grade aluminum
- Finish: Black anodized brushed finish
Key Applications
- Compatible valve covers with -12 ORB breather ports
- Catch can, crankcase breather, and valve cover ventilation systems using 3/8" hose
