Product Description

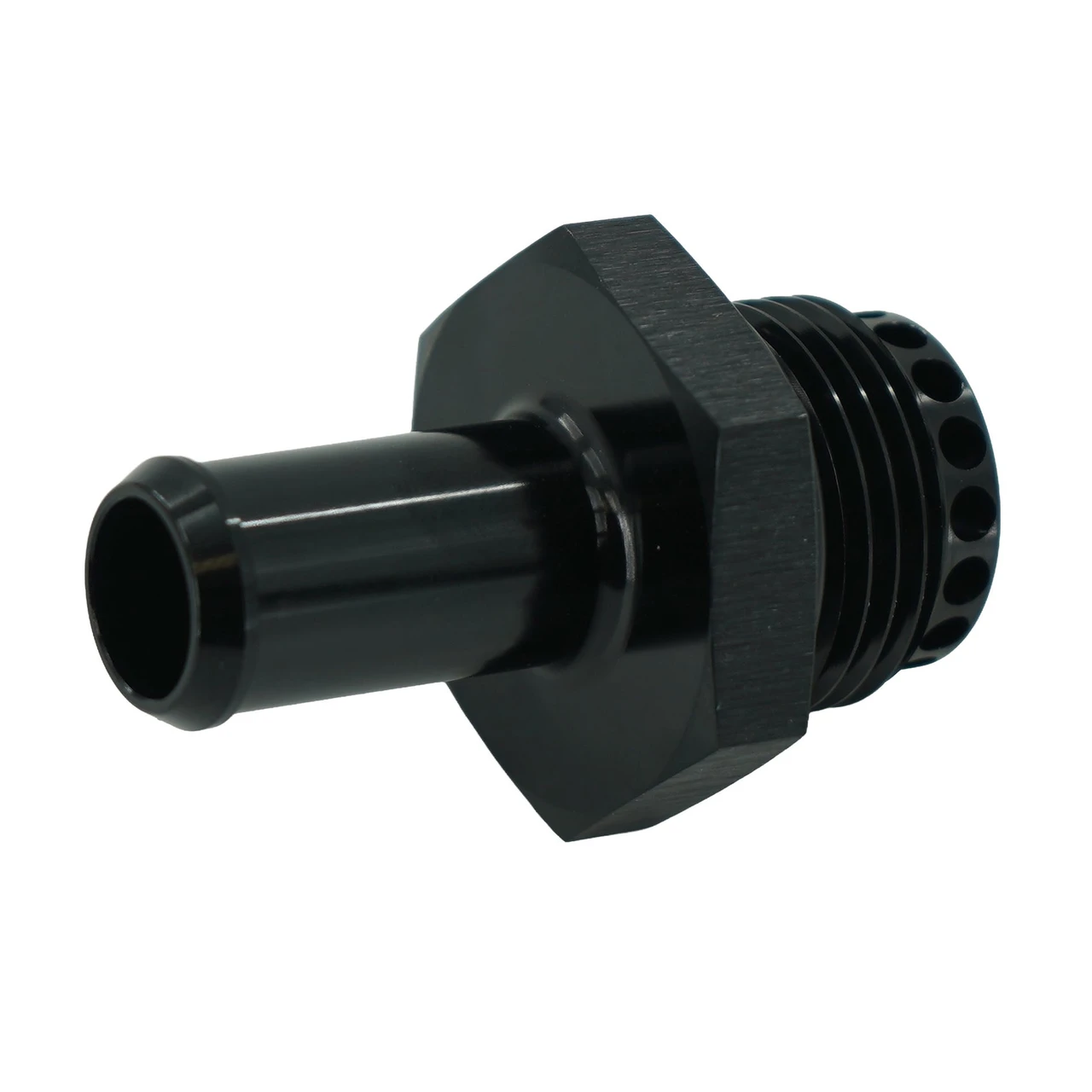

Brian Tooley Racing BTR Baffled -12 ORB Breather Adapter to 5/8" Hose Barb - Black
Straight Baffled -12 ORB Breather Adapter with 5/8" Hose Barb for Valve Cover Catch Can & Crankcase Ventilation Systems
Add extra oil-control support to your valve cover breather system with the Brian Tooley Racing BTR Baffled -12 ORB Breather Adapter to 5/8" Hose Barb. This straight adapter threads into a compatible -12 ORB valve cover port and transitions to a 5/8" hose barb for catch can, breather, and crankcase ventilation plumbing. An integrated baffle is positioned directly behind the -12 ORB male end to help keep more liquid in the crankcase before vapors enter the connected hose and catch can system.
Key Features & Benefits
- Integrated Baffle Behind the -12 ORB Connection: The Brian Tooley Racing Baffled -12 ORB Breather Adapter places a baffle directly behind the threaded male end. This added separation helps reduce liquid carryover from the valve cover into a connected breather hose or catch can on compatible crankcase ventilation systems.
- Useful When Internal Valve Cover Baffles Cannot Be Used: Some valve cover and valvetrain combinations cannot retain an internal baffle because of clearance constraints. This external baffled breather adapter provides an added oil-control option at the -12 ORB port without relying solely on the original internal valve cover baffle.
- Converts a -12 ORB Port to 5/8" Hose: The -12 ORB male end is designed for compatible valve cover breather ports, while the opposite end uses a 5/8" hose barb. This provides a clean transition for catch can hoses, vent hoses, and other compatible crankcase breather plumbing layouts.
- Straight Adapter Layout: The straight fitting profile provides a direct path from the valve cover port to the attached hose. This configuration is well suited for engine bays where a straight breather outlet offers the cleanest routing path for hose connections and catch can plumbing.
- Brian Tooley Racing Billet Aluminum Construction: Brian Tooley Racing constructs this breather adapter from aerospace-grade aluminum and finishes it in black anodizing. The durable black finish complements black AN fittings, BTR valve covers, catch cans, braided hose, and other performance engine bay components.
Specs
- Brand: Brian Tooley Racing
- Product Type: Baffled -12 ORB Breather Adapter to 5/8" Hose Barb
- Fitting Style: Straight
- End 1: -12 ORB male
- End 2: 5/8" hose barb
- Baffle Location: Behind the -12 ORB male end
- Material: Aerospace-grade aluminum
- Finish: Black anodized brushed finish
Key Applications
- Compatible valve covers with -12 ORB breather ports
- Catch can, crankcase breather, and valve cover ventilation systems using 5/8" hose
