Product Description

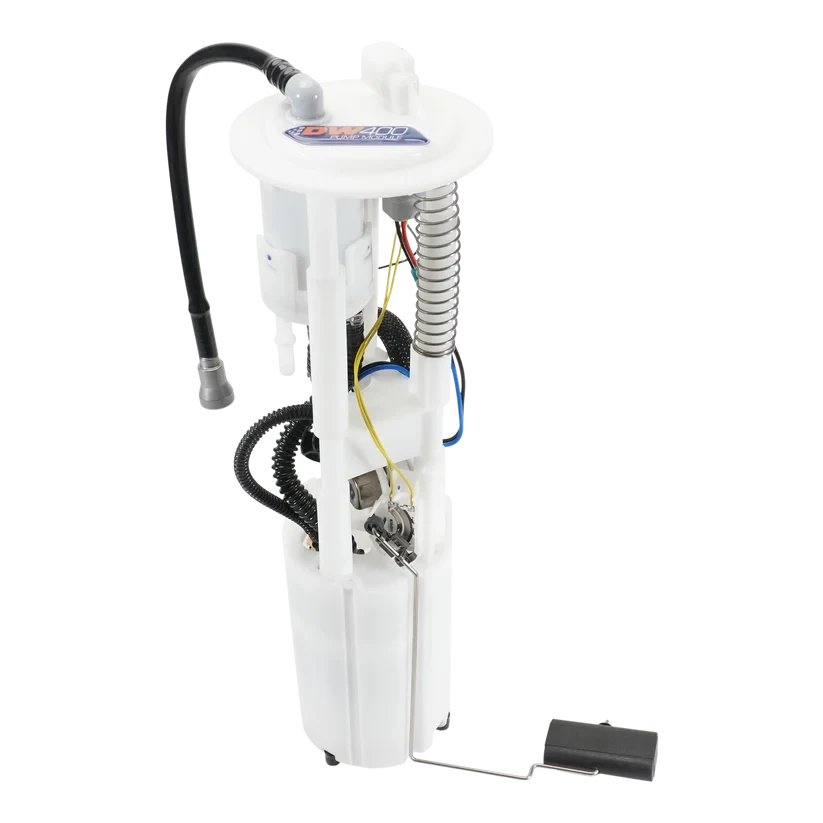

DeatschWerks DW400 Performance Fuel Pump Module 2007-2013 Chevrolet Corvette C6 LS2, LS3 & Z06 LS7
Upgrade your C6 Corvette's fuel system with the DeatschWerks DW400 Performance Fuel Pump Module. Designed as a complete drop-in replacement for 2007-2013 Covettes, this high-flow module delivers significantly more fuel than the factory assembly while retaining OEM functionality. The integrated module maintains the factory returnless fuel system, fuel level sensor operation, and surge bucket design, making installation straighforward with no addition plumbing required.
Featuring the proven DW400 fuel pump, this module is capable of supporting up to 800 horsepower on gasoline and provides approximately 34% more flow than the factory C6 fuel pump module. The ethanol-compatible filter and OE-quality construction make it an excellent choice for naturally aspirated, supercharged, or turbocharged street and race applications.
Features
- Complete drop-in fuel pump module for 2007-2013 Chevrolet Corvette
- Includes high-flow DeatschWerks DW400 fuel pump
- Direct OEM tank fitment
- Retains factory returnless fuel system
- Maintains OEM fuel level sensor and surge bucket functionality
- Supports up to 800 horsepower on gasoline
- Approximately 34% more flow than the factory Corvette fuel module
- Ethanol-compatible fuel filter
- OE-style plug-and-play electrical connection
- No additional plumbing required
- Full replacement module reduces installation time

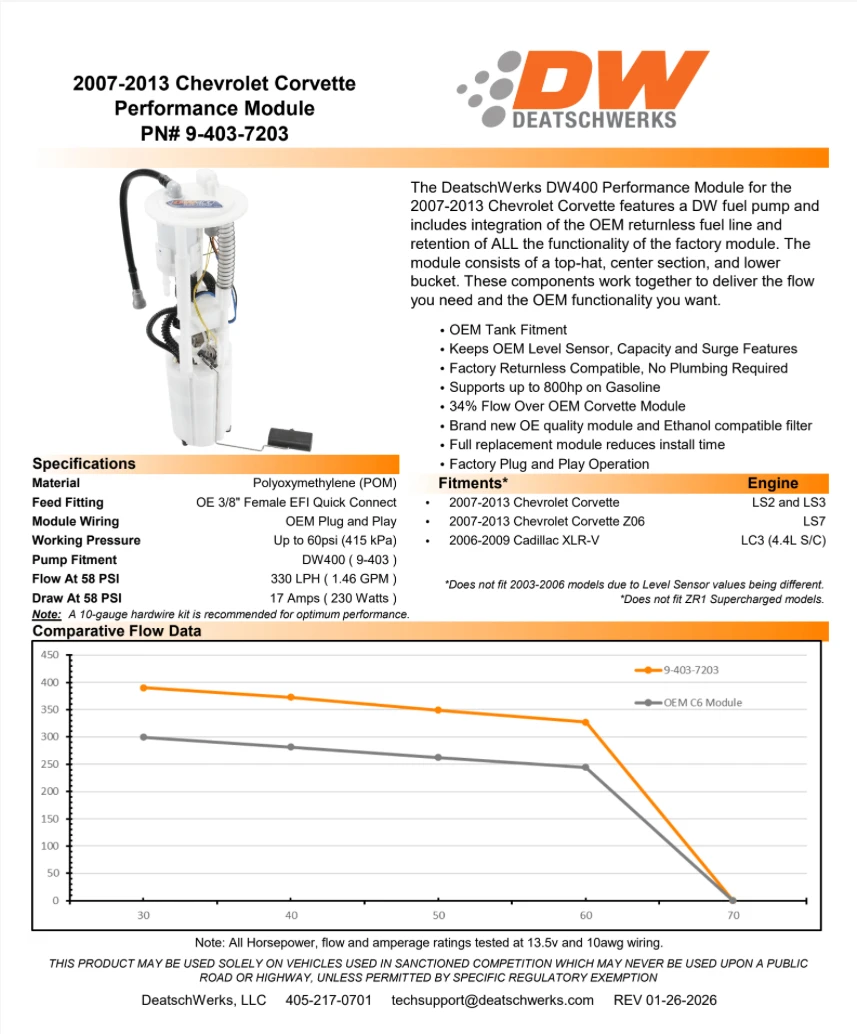

Specifications
- Manufacturer: DeatschWerks
- Part Number: 9-403-7203
- Series: DW400
- Pump: DW400 (9-403)
- Material: Polyoxymethylene (POM)
- Working Pressure: Up to 60 PSI (415 kPa)
- Flow Rate @ 58 PSI: 330 LPH (1.46 GPM)
- Current Draw @ 58 PSI: 17 Amps (230 Watts)
- Fuel Line Connection: OE 3/8” Female EFI Quick Connect
- Electrical Connection: OEM Plug-and-Play
Vehicle Fitment
Chevrolet
- 2007-2013 Corvette (LS2 & LS3)
- 2007-2013 Corvette Z06 (LS7)
Cadillac
- 2006-2009 XLR-V (LC3 4.4L Supercharged)
Notes
- Does not fit 2003-2006 Corvette models due to different fuel level sensor values.
- Does not fit Corvette ZR1 models.
- A 12-gauge fuel pump hardwire kit is strongly recommended to maximize voltage at the pump and achieve optimum performance (DeatschWerks PN: FPHWK).
What’s Included
- (1) DeatschWerks DW400 Performance Fuel Pump Module
- Installation-ready assembly
