Product Description

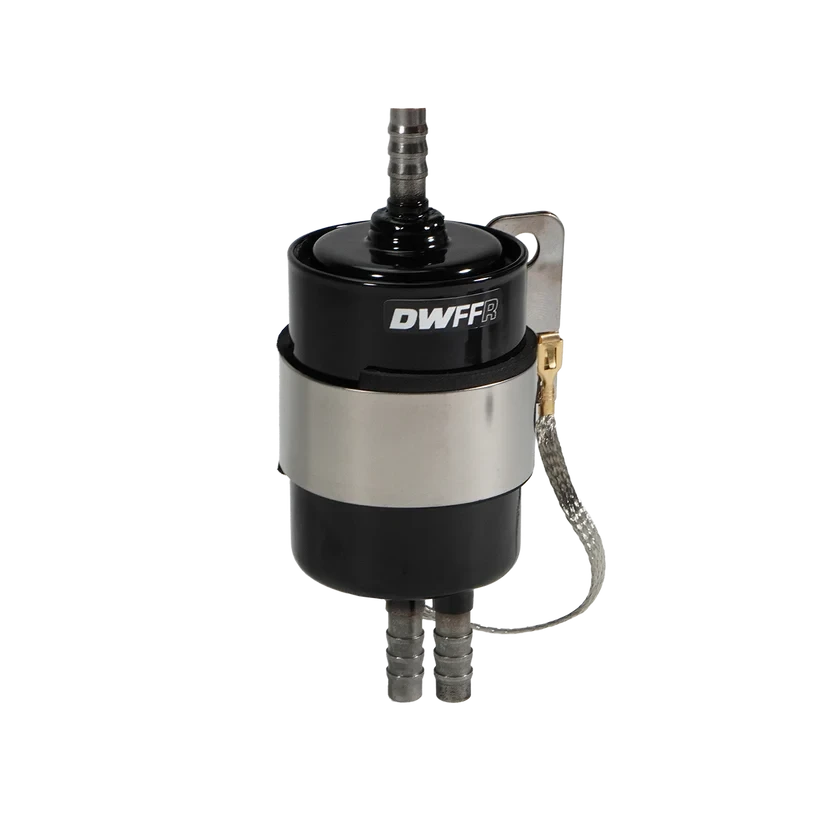

DeatschWerks 10 Micron 3/8” Barb Fuel Filter Regulator – 58 PSI – Gasoline & E85
The DeatschWerks DWFFR Fuel Filter Regulator is a convenient all-in-one solution that combines fuel filtration and fuel pressure regulation into a single compact unit. Designed for high-performance EFI applications, the DWFFR features an integrated 58 PSI preset regulator and a 10-micron filter element to provide clean, consistent fuel delivery.
Unlike the factory GM Corvette filter/regulator, the DWFFR utilizes 3/8" barb fittings on the inlet, outlet, and return ports for simple plumbing while delivering up to 48% greater flow efficiency than the OE design. Capable of supporting over 700 horsepower on gasoline, it's an excellent choice for EFI conversions, LS swaps, and other high-performance fuel systems.
Features:
- Combines fuel filter and pressure regulator into one compact assembly
- Preset 58 PSI (4 BAR) internal fuel pressure regulator
- High-efficiency 10-micron fuel filter element
- 3/8" barb inlet, outlet, and return connections
- Supports gasoline, and E85 fuel
- Up to 700 HP on gasoline (at 2 PSI pressure drop)
- Approximately 48% greater flow efficiency than the OE GM Corvette filter/regulator
- Simple installation with convenient hose barb connections
- Stainless steel construction body in black finish

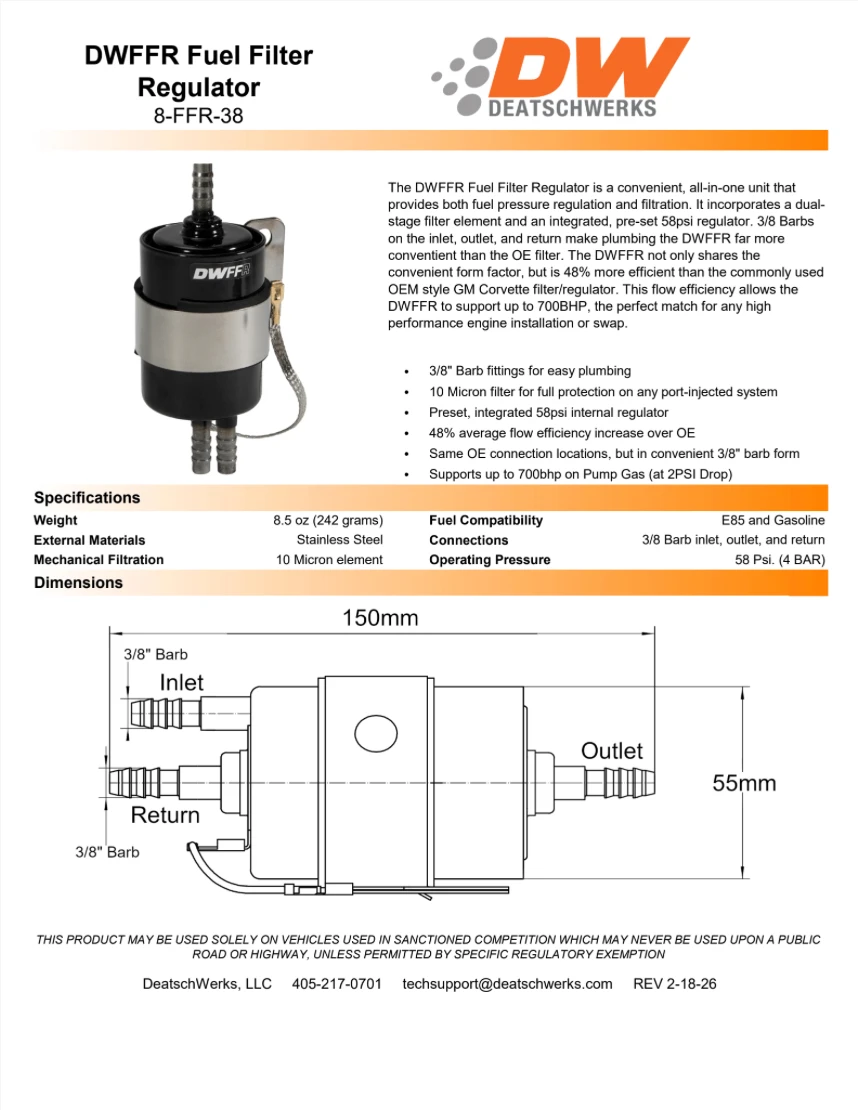

Specifications:
- Fuel Pressure: 58 PSI (4 BAR)
- Filter Rating: 10 Micron
- Inlet Connection: 3/8" Barb
- Outlet Connection: 3/8" Barb
- Return Connection: 3/8" Barb
- Fuel Compatibility: Gasoline & E85
- Housing Material: Stainless Steel
- Overall Length: 150mm
- Diameter: 55mm
- Weight: 8.5 oz (242 g)
Ideal For:
- LS engine swaps
- EFI fuel systems
- Performance street vehicles
- Race vehicles
- Custom fuel system builds
