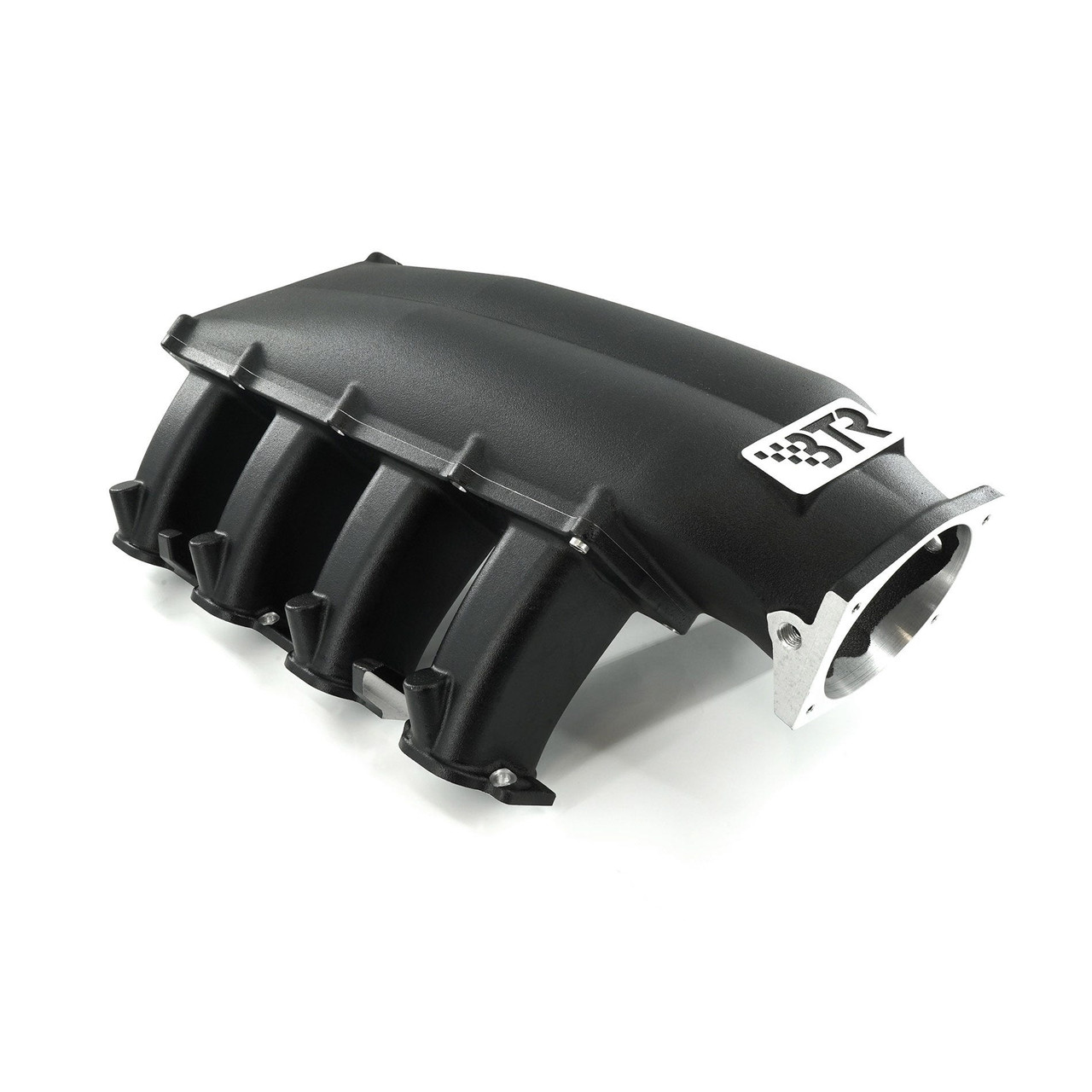

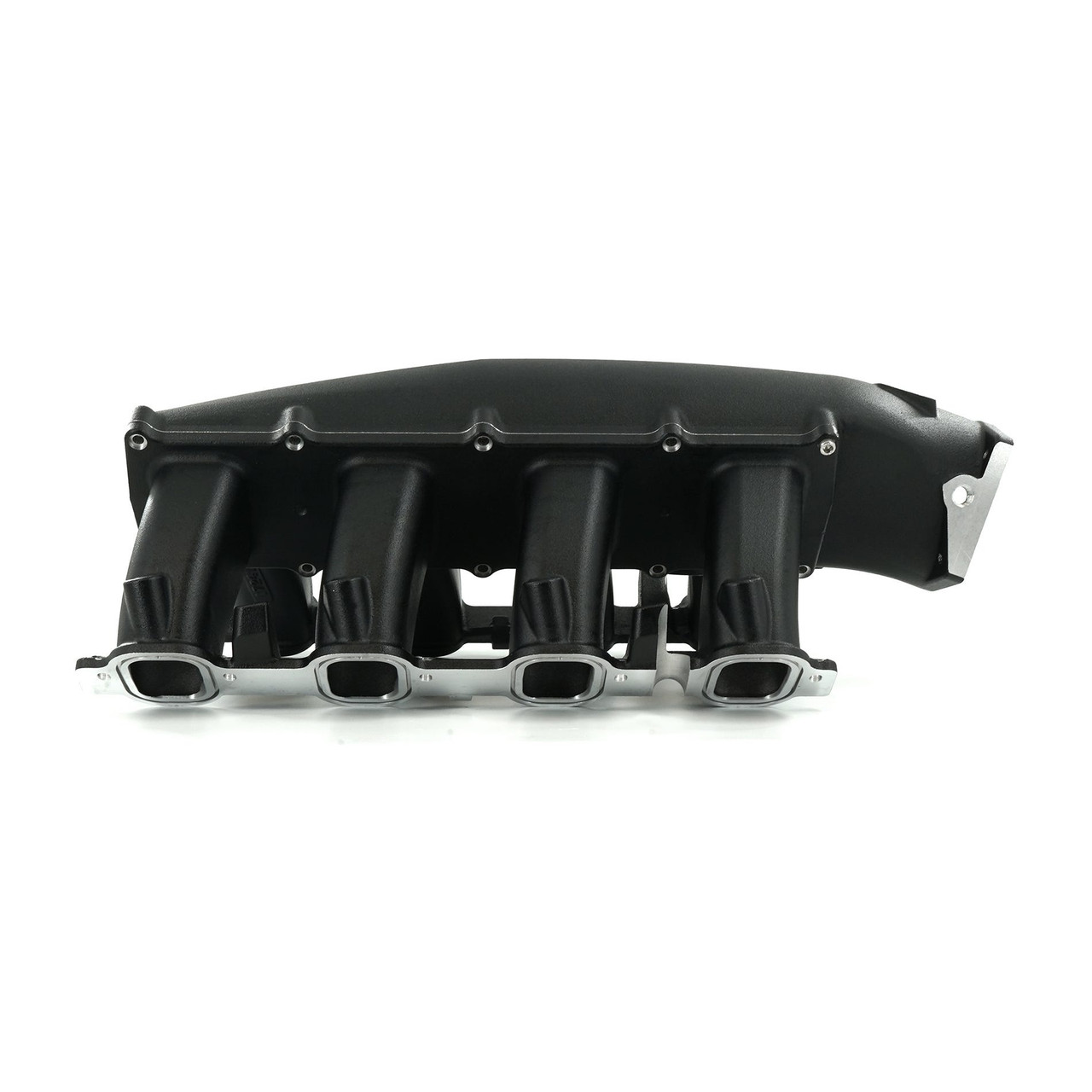

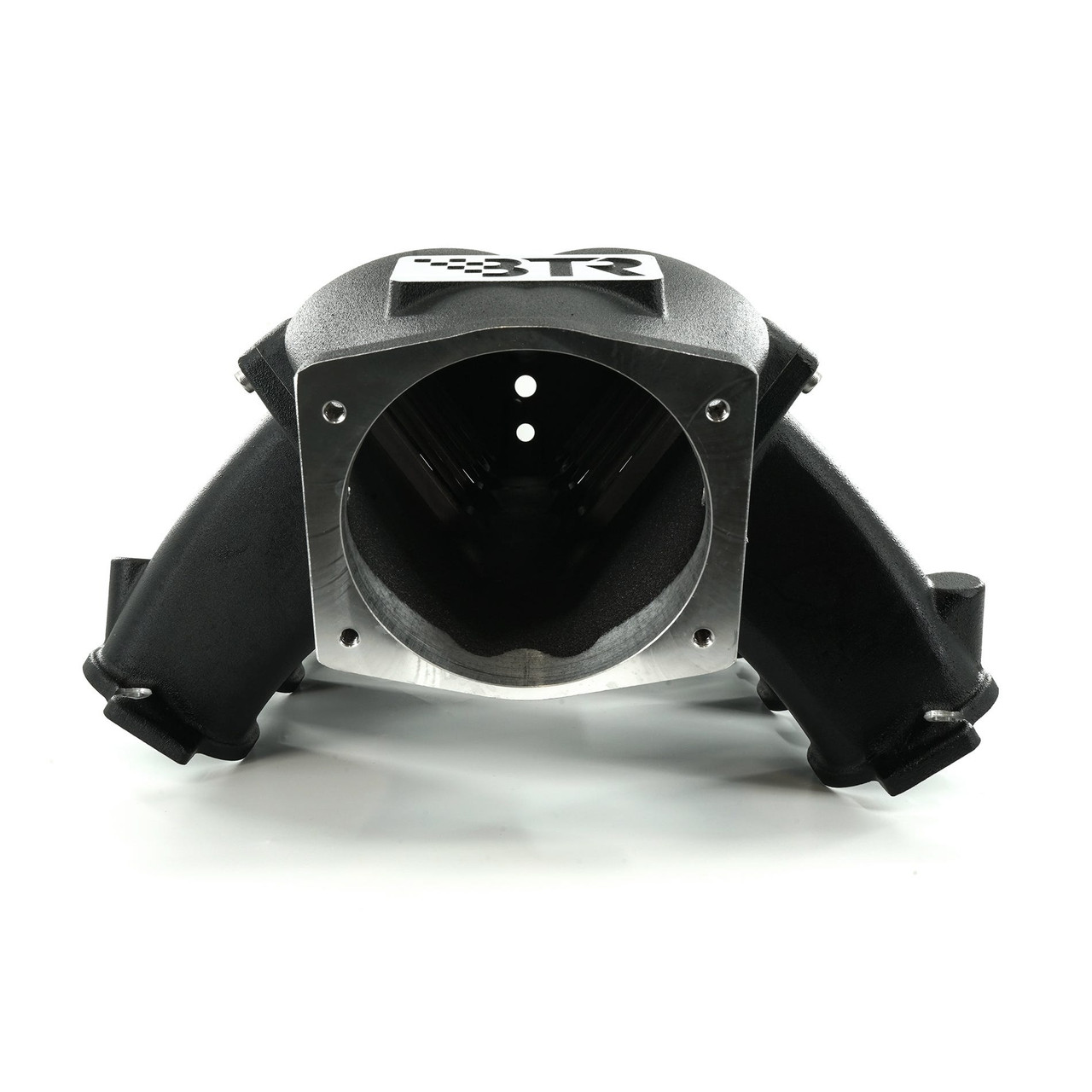

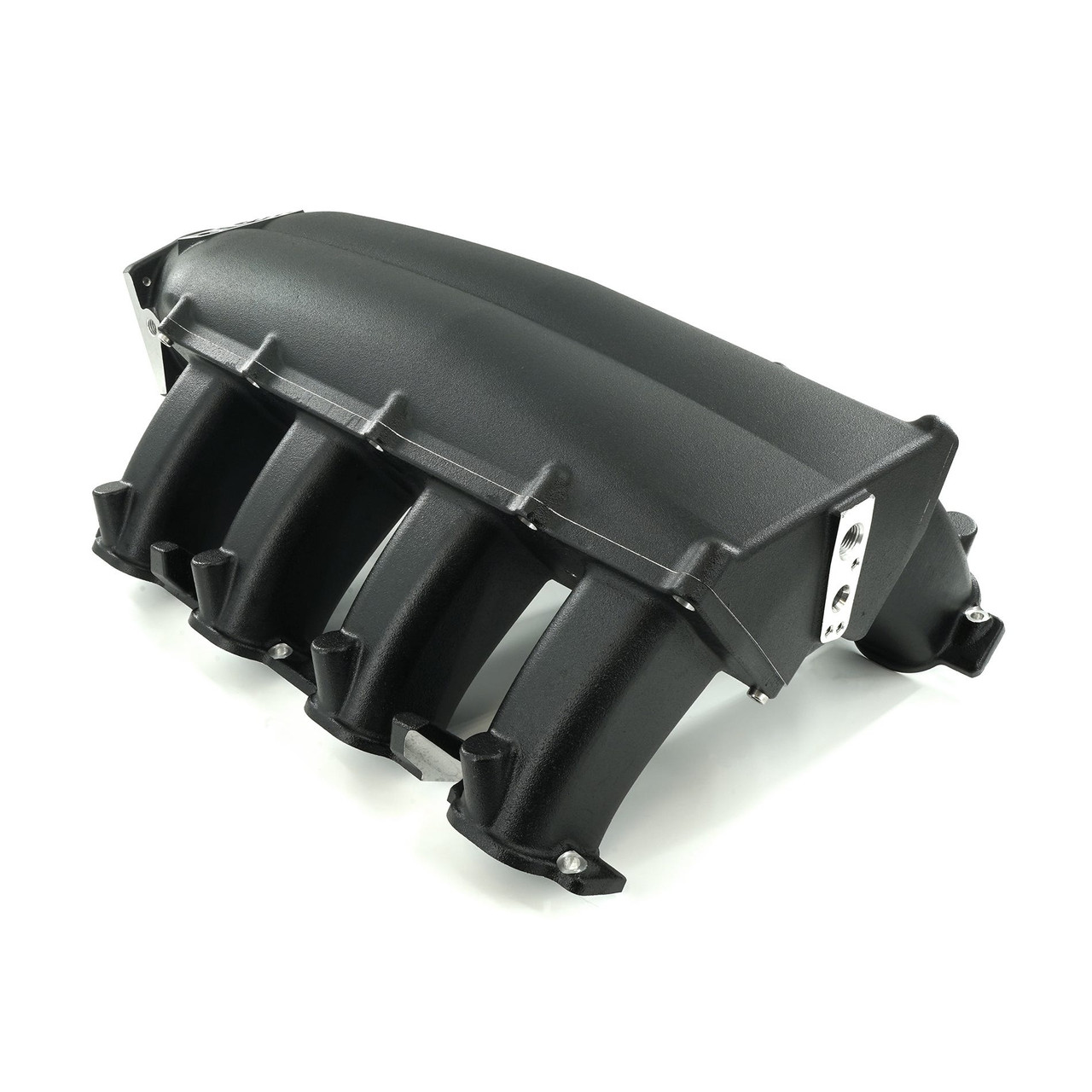

BTR Brian Tooley Gen V TRInity Mid-Length Intake Manifold - Black - 2016-2024 Camaro 6.2 LT1 - Without Injector Holes
The BTR TRInity Gen V LT Mid-Length Intake Manifold is designed for Gen V LT applications looking for strong performance across both naturally aspirated and boosted combinations. This mid-length runner version helps bridge the gap between BTR’s short-runner and long-runner intake designs, making it a great option for high-performance street, race, and power-adder builds.
The 3-piece cast aluminum design offers excellent flexibility and serviceability while delivering a performance-focused operating range of approximately 3,500-7,500 RPM. The mid-length runner design uses 6” runners and an interchangeable plenum to provide a strong balance of top-end power and usable mid-range performance.

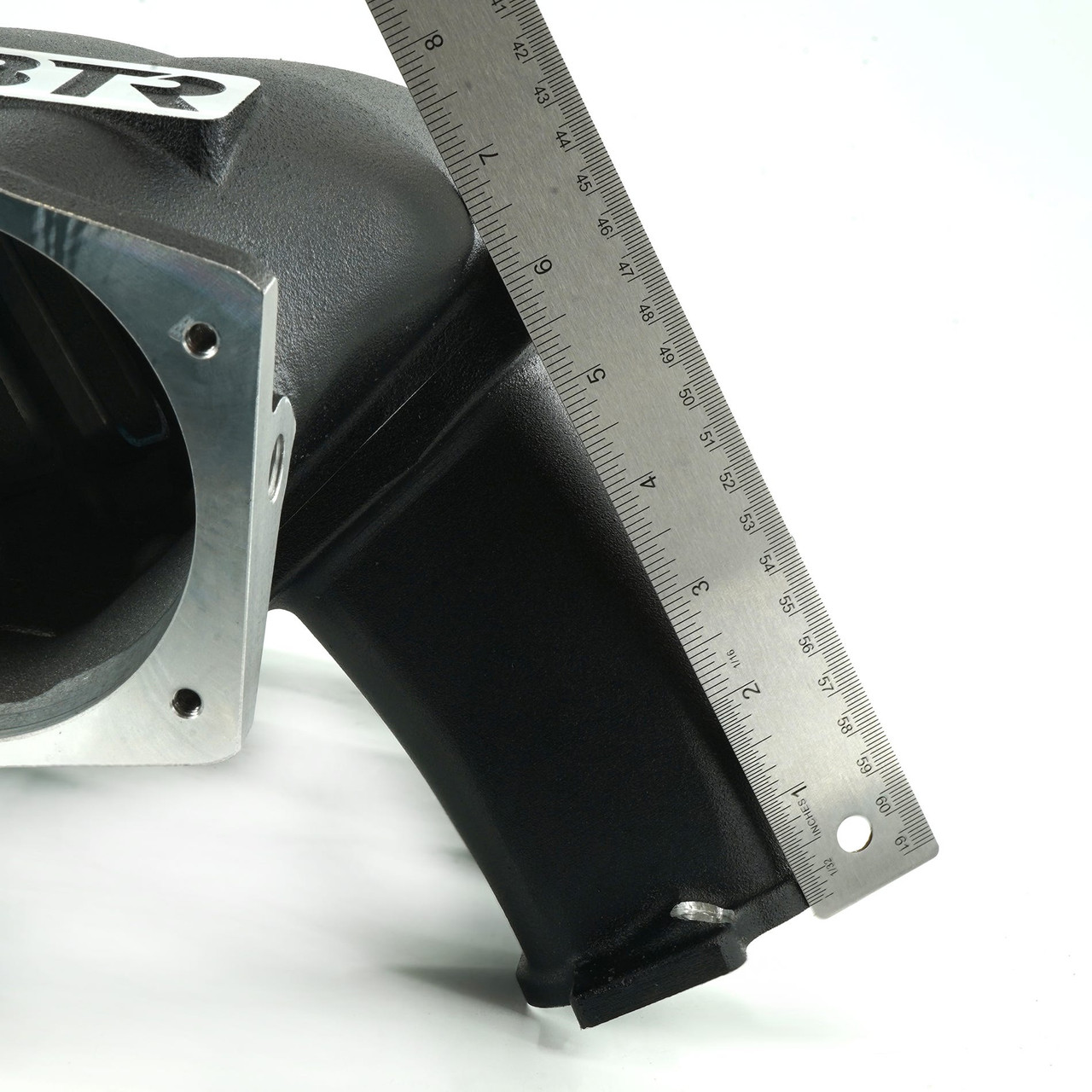

BTR has confirmed hood-to-manifold clearance on 6th Gen Camaro applications with OEM hoods, but underhood clearance should always be verified before ordering.
Features:
- 3-piece cast aluminum intake manifold design
- Mid-length runner configuration
- Designed for Gen V LT engines | 6th Gen Camaro | Muscle Car Swaps
- No injector holes
- Direct injection fueling style
- Black finish
- CNC-machined port match and port mouth radius
- Interchangeable plenum design
- Uses captured O-rings at the runner/plenum interface
- SAE O-ring port seals in dovetailed O-ring grooves
- Includes two 1/4-27 NPT ports on the side of the throttle body boss
- Includes on 3/8-18 NPT port on the rear
- Accepts drive-by-wire or cable-operated throttle bodies
- Semi-assembled with hardware required to complete installation
