Product Description

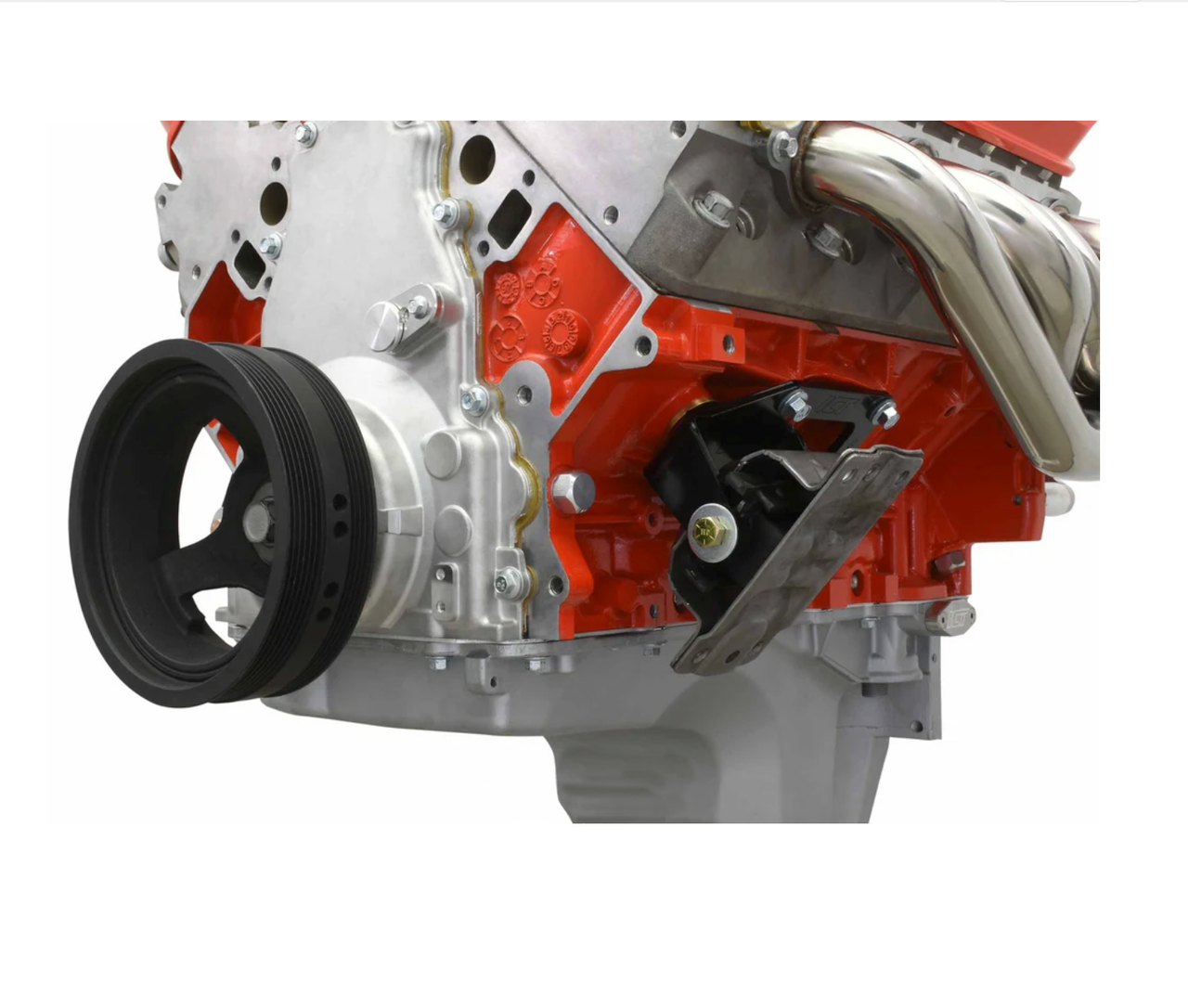

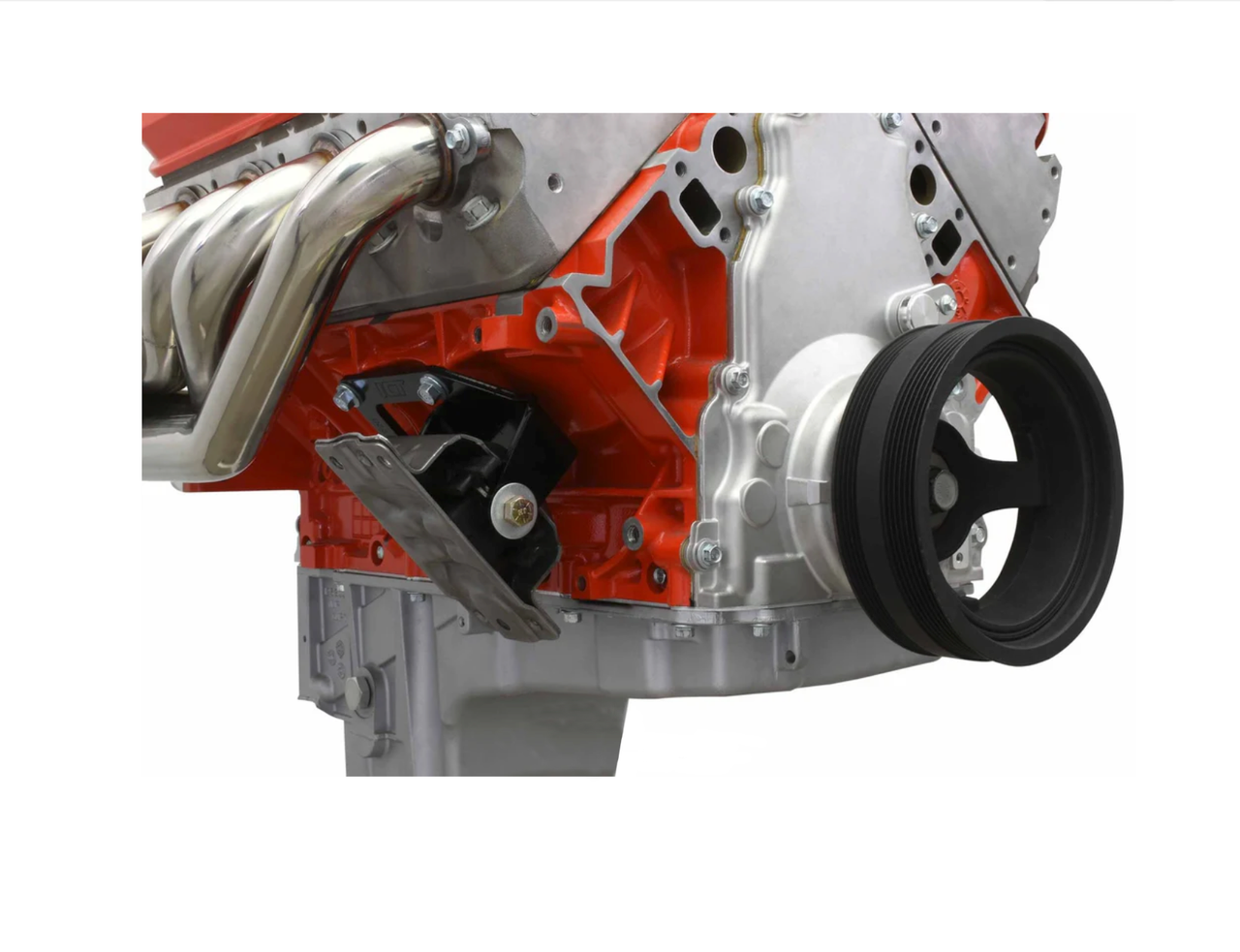

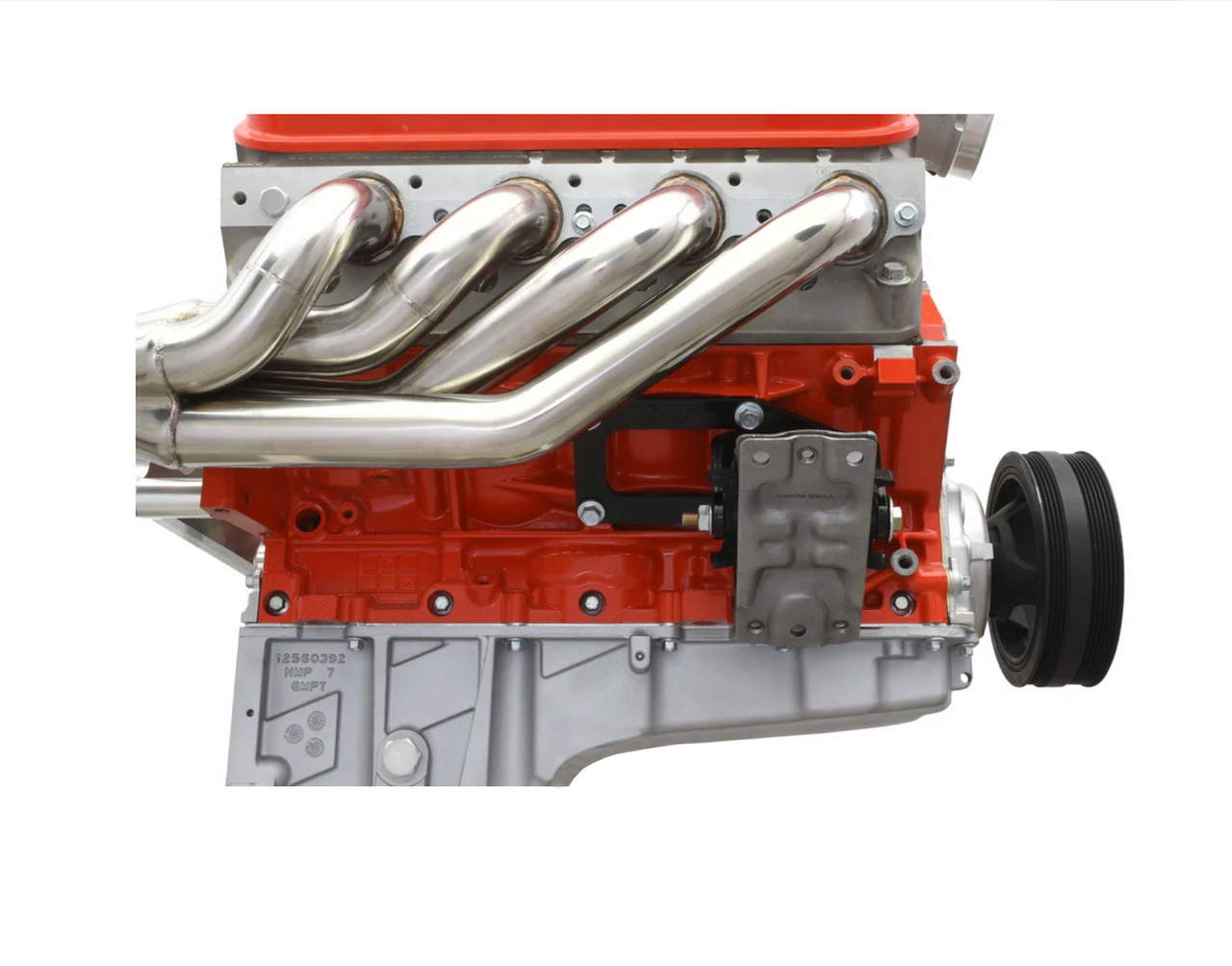

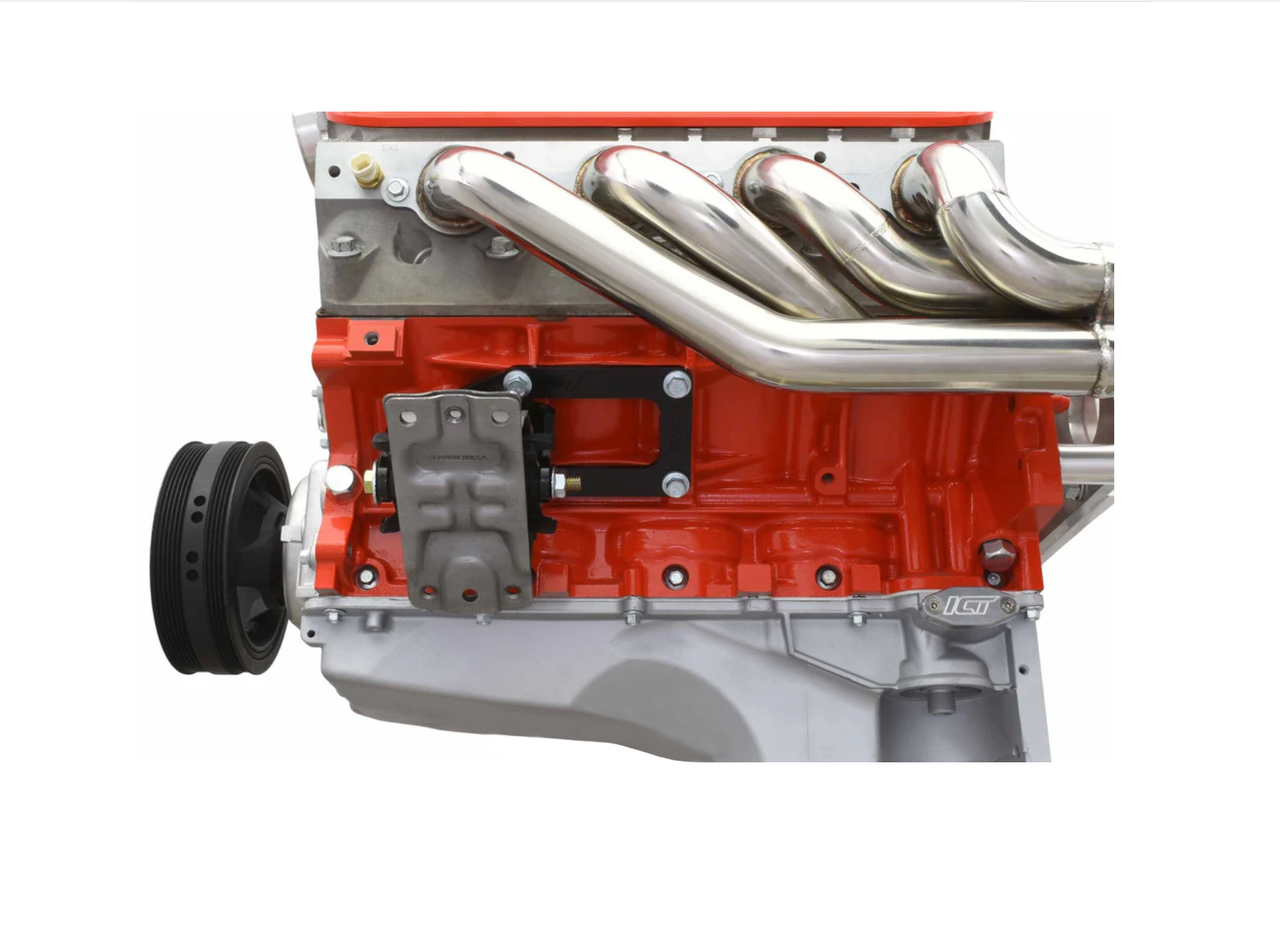

ICT Billet 2WD 1988-1998 Chevy / GMC OBS Truck - LS Swap - Engine Mount Kit
This ICT Billet engine mount kit is designed to help install a Gen III or Gen IV LS-based engine into select 2WD Chevy and GMC OBS trucks and related GM vehicles.
The mount design retains the factory small block Chevy crankshaft and bellhousing location, which helps eliminate the need to modify the transmission tunnel, driveshaft, or shift linkages when using the 700R4 or 4L60E transmission.
This kit includes OE-style rubber frame mounts along with the upper engine-side mounts. The engine clamshell mounts are powder coated black for added durability and a clean appearance.
Features:
- Fits 2WD applications only
- Designed for Gen III and Gen IV LS engine swaps
- Retains factory SBC crankshaft and bellhousing location
- Helps avoid transmission tunnel, driveshaft, and linkage modifications when using the factory 700R4 or 4L60E
- Made in the USA

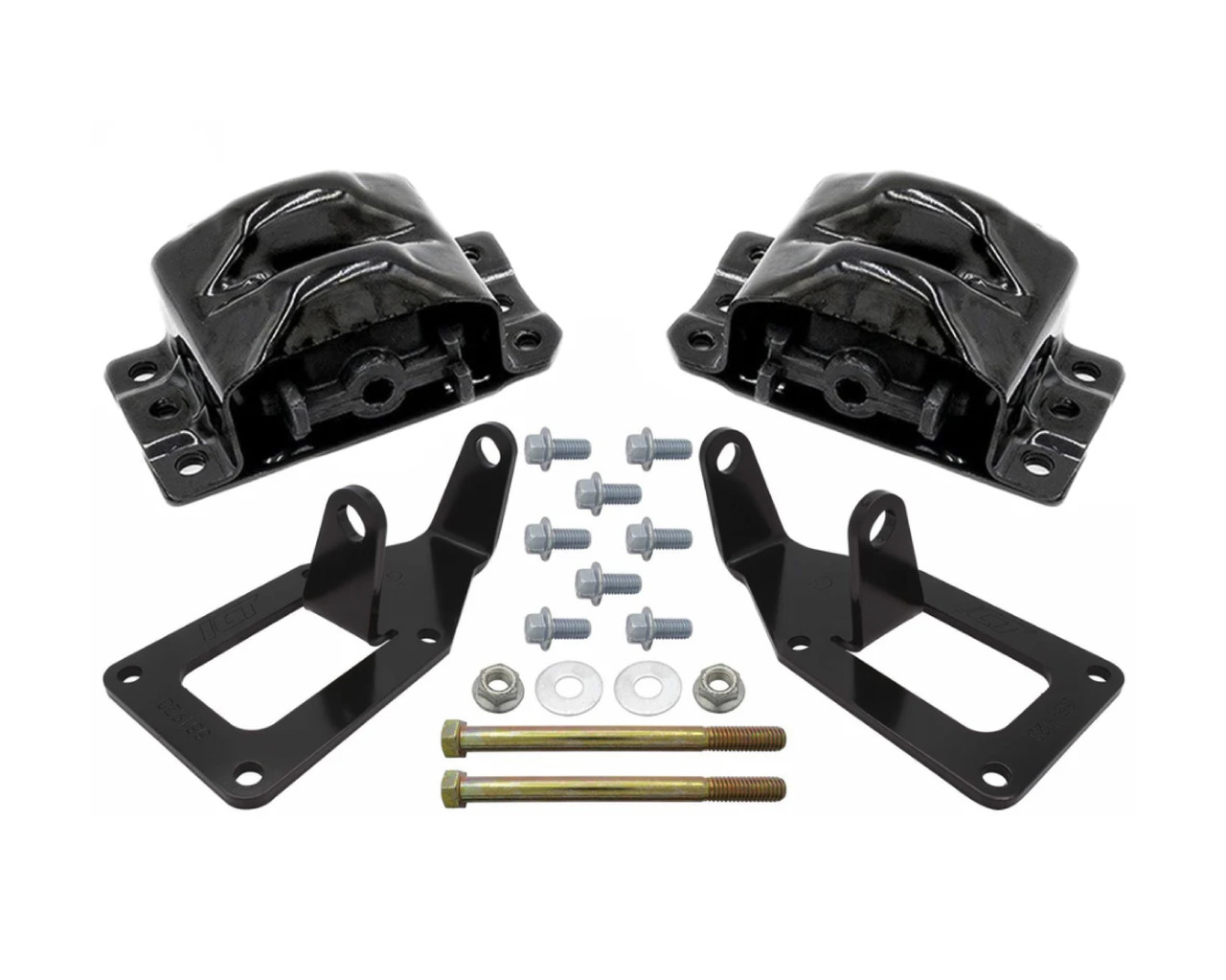

Includes:
- 2 Rubber frame mounts
- 2 Upper engine-side mounts
- Mounting Hardware
Fitment:
- Chevy/GMC C1500 Pickup/Suburban 1988-1999
- Chevy/GMC C2500 Pickup/Suburban 1988-2000
- Chevy/GMC C3500 Pickup 1988-2002
- Chevy/GMC Express/Savana 1500 1996-2002
- Chevy/GMC Express/Savana 2500 1996-2002
- Chevy/GMC Express/Savana 3500 1996-2002
- Chevy/GMC G30/G3500 1996
- Chevy/GMC P30/P3500 1998-1999
- Chevy R10 Pickup/Suburban 1987-1988
- Chevy/GMC R1500 Pickup/Suburban 1987-1991
- Chevy R20 Pickup/Suburban 1987-1991
- Chevy/GMC R2500 Pickup/Suburban 1987-1991
- Chevy R30 Pickup 1987-1988
- Chevy R3500 Pickup 1989-1991
- GMC R3500 Pickup 1987-1991
- Chevy/GMC Tahoe/Yukon 1992-2000
- Chevy/GMC V30/V3500 Pickup 1988-1991
- Chevy V3500 Pickup 1989-1991
