Product Description

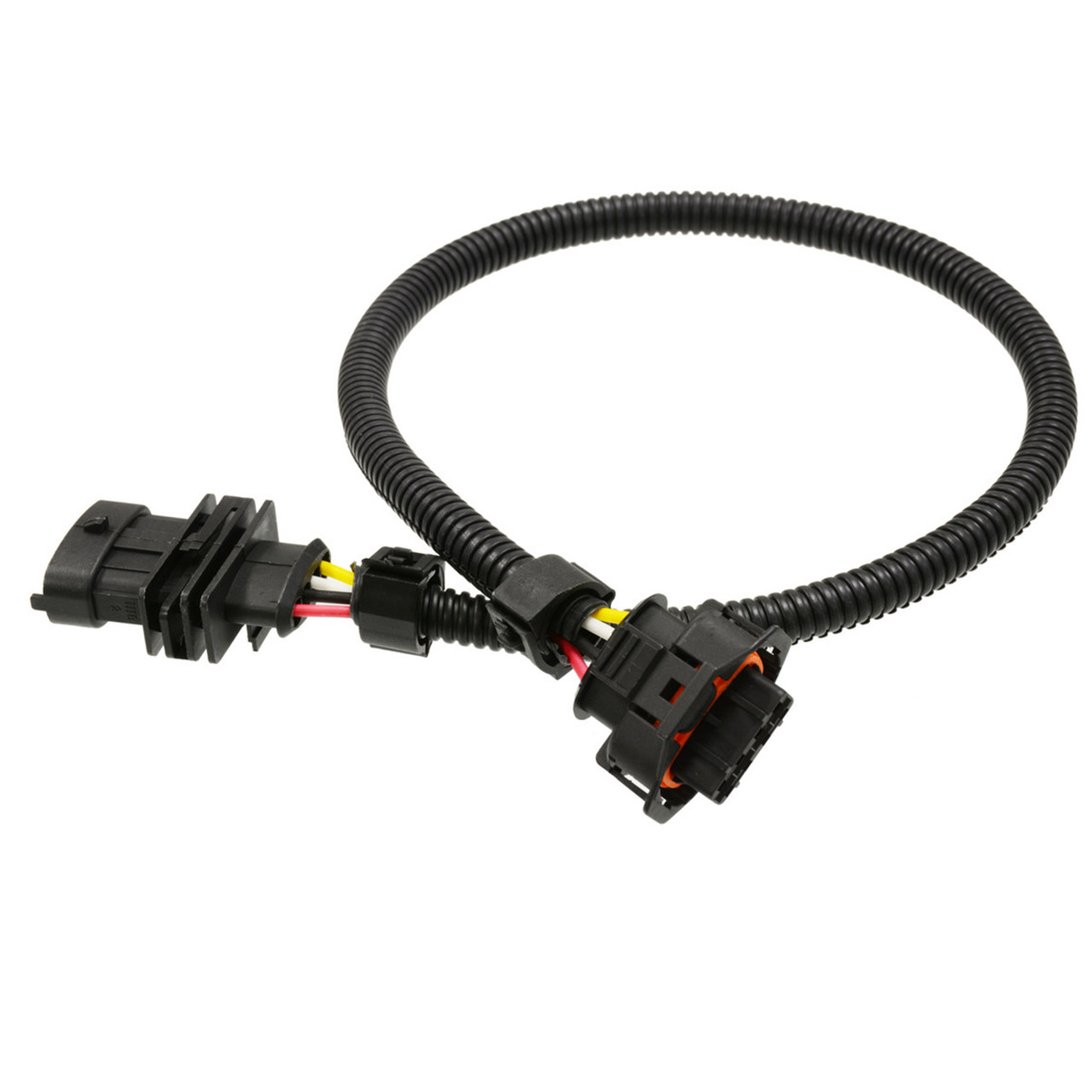

Michigan Motorsports 4-Pin Bosch T-MAP Sensor Extension Harness - 20"
20" MAP & Intake Air Temperature Sensor Relocation Harness | 4-Pin Bosch T-MAP Connector
Add needed reach to a compatible Bosch T-MAP sensor connection with this 20" 4-pin MAP sensor extension harness. Designed for Bosch temperature and MAP sensor applications using the matching 4-pin connector configuration, this relocation harness is a practical solution for turbocharged engine builds, intake modifications, custom charge piping, engine swaps, and sensor relocation projects. The extension provides additional routing flexibility without requiring permanent modification to the original harness. Verify connector shape, terminal layout, keyway design, and wiring pinout before purchase.
Key Features & Benefits
- 20" Sensor Extension Length: Provides approximately 20" of additional harness length for compatible MAP and intake air temperature sensor relocation or custom routing needs.
- 4-Pin Bosch T-MAP Connector Configuration: Designed for compatible Bosch T-MAP sensors that combine manifold absolute pressure and intake air temperature sensing in one 4-pin connector.
- Useful for Turbocharged Applications: A practical option for compatible turbocharged engine combinations requiring sensor relocation due to custom intake tubing, charge piping, intercooler plumbing, or manifold modifications.
- Clean Plug-In Extension Solution: Helps extend a compatible sensor connection without cutting or permanently splicing the original vehicle wiring harness.
- Connector Verification Required: Sensor connectors can vary by manufacturer, engine, and model year. Compare the connector shell, terminal count, locking tab, keyway, and wiring configuration before ordering.
Specs
- Product Type: MAP sensor extension / relocation harness
- Harness Length: 20"

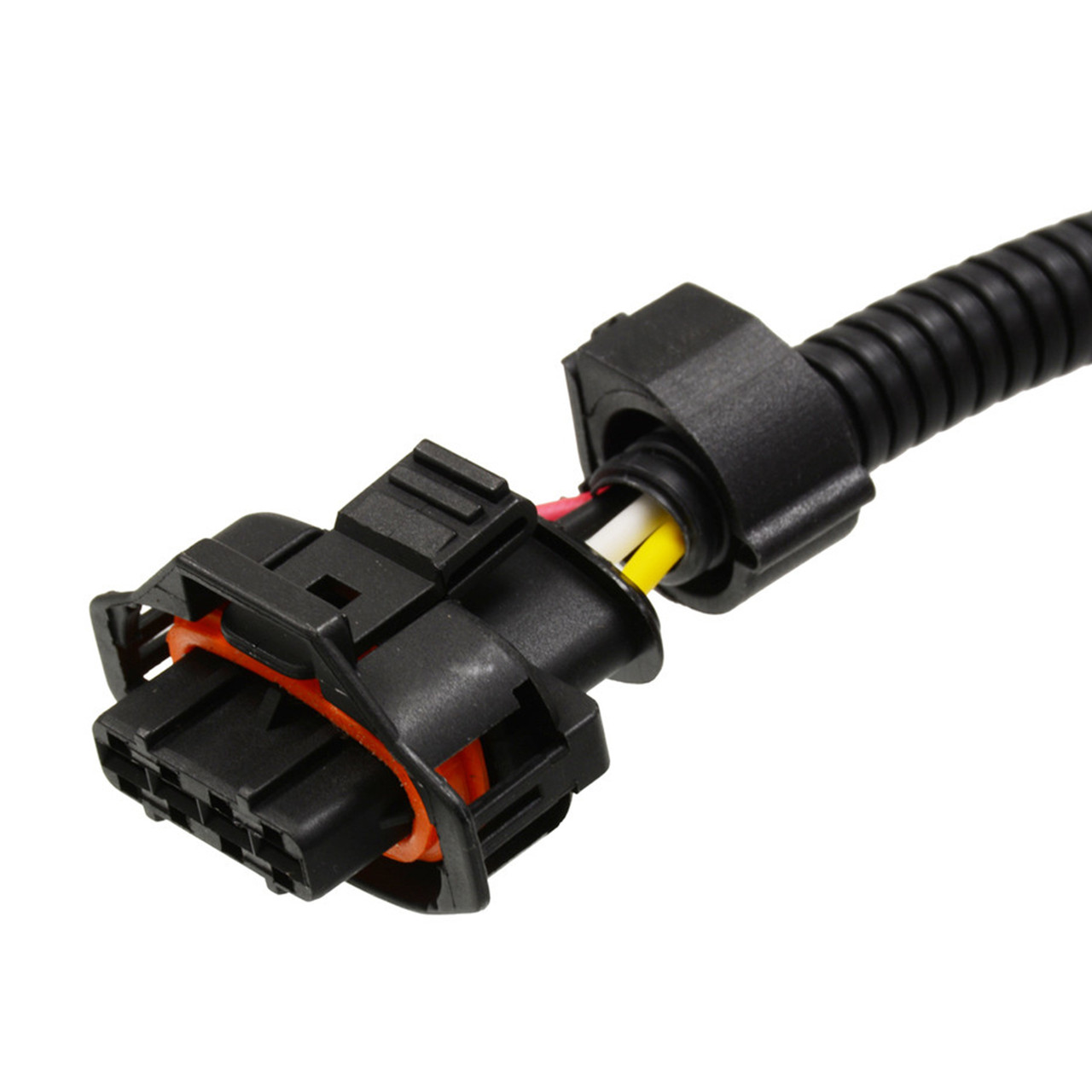

- Connector Style: 4-pin Bosch T-MAP sensor connector
- Sensor Function: Combined manifold absolute pressure and intake air temperature sensor connection
- Primary Use: Compatible T-MAP sensor extension and relocation
Notes
- Connector Verification: Confirm your original sensor and harness connectors use the matching 4-pin Bosch T-MAP connector configuration before purchase.
- Pinout Verification: Verify terminal function and wiring pinout for your specific vehicle, PCM, ECM, or standalone ECU before installation.
- Application Note: This harness uses a 4-pin Bosch T-MAP connector style associated with Ford Falcon BA / BF XR6 Turbo 4.0L 6-cylinder turbo applications. Connector matching is required for all other applications.
- Installation Note: Route the harness away from exhaust heat, sharp edges, moving components, and locations where the wiring could be stretched, pinched, or exposed to abrasion.
Key Fitments
- CADILLAC SRX 2010-2011
- CHEVROLET COBALT 2005-2007
- PONTIAC PURSUIT 2005-2006
