Product Description
Michigan Motorsports Billet LS1 D580 Coil Relocation Brackets for LSX LS1 Swap
Fits LS1 D580 / 12558948 Ignition Coils | Billet Remote Mount Coil Relocation Kit with 36" Bracket Harnesses
Clean up your LS engine bay with this Billet LS1 D580 Coil Relocation Bracket Kit. Designed for LS1 D580 / 12558948 ignition coils, this bolt-on relocation kit allows you to move the coil packs away from the valve covers for a cleaner, more organized engine bay layout. The kit includes two billet coil brackets, mounting hardware for 8 coils, and two 36" coil relocation bracket harnesses, giving you the flexibility to mount the coils on the frame rails, firewall, under the headers, or another custom location that works best for your LS swap. These brackets can be left raw, polished to a mirror finish, or painted to match your vehicle after test fitting.
Key Features & Benefits
- Fits LS1 D580 Coils: Designed specifically for LS1 D580 / 12558948 ignition coils, making this a clean relocation solution for LS1, LSX, and custom LS swap applications using the correct coil style.
- Complete V8 Coil Bracket Setup: Includes two billet brackets and enough mounting hardware for 8 coils, giving you the parts needed to relocate one complete V8 engine’s ignition coil set.
- Includes 36" Relocation Harnesses: The included coil relocation bracket harnesses are 36" long, giving you the extra reach needed to mount the coil packs in a cleaner or more accessible remote location.
- Flexible Remote Mounting Options: Brackets can be mounted on frame rails, the firewall, under the headers on each side, or another suitable custom location. This allows you to tailor the coil layout to your engine bay, swap project, or show-quality build.
- Billet Bracket Construction: The billet brackets provide a durable and clean-looking coil mounting solution. They can be left unfinished, polished, or painted after test fitting to match the style of your vehicle.
Kit Includes

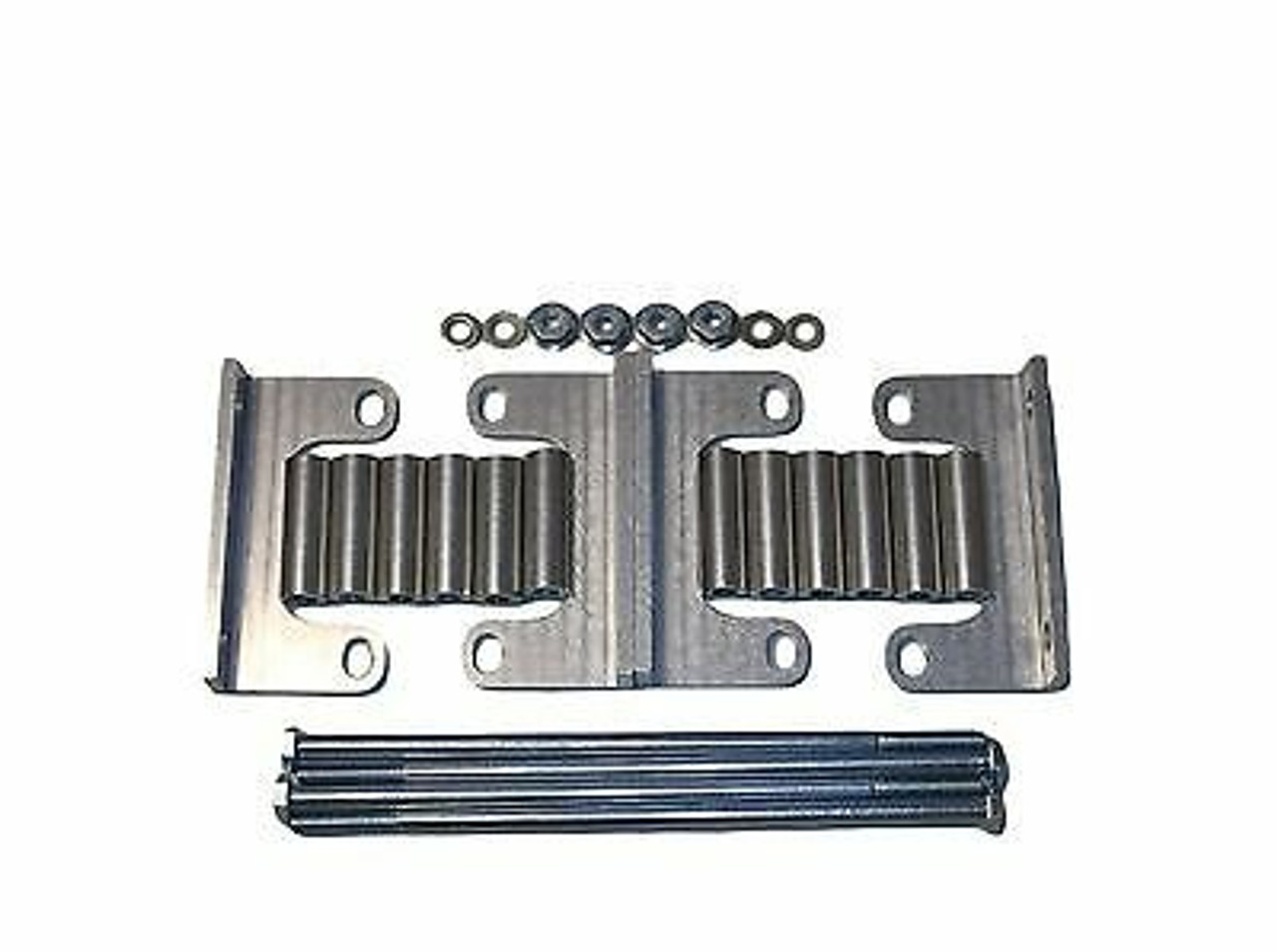

- (2) Billet LS1 D580 coil relocation brackets

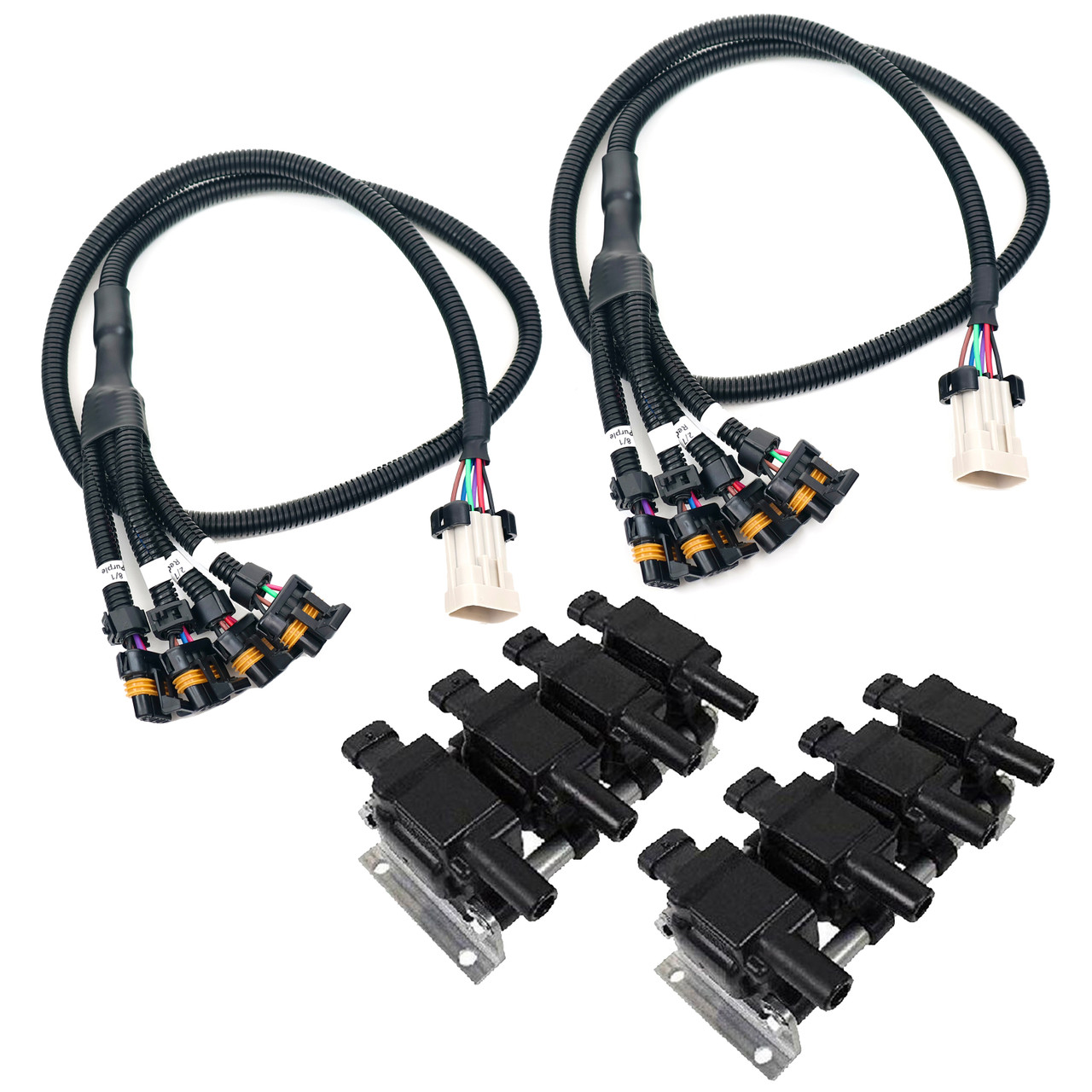

- (2) 36" coil relocation bracket harnesses
- Mounting hardware for 8 coils / one V8 engine
Installation Notes
- Test Fit First: Test fit the brackets and confirm mounting location before polishing or painting.
- Coil Connector Wire Color Note: When installing, note the color of the second wire on the coil connector to identify the correct coil position.
- Purple Wire: Goes to the coil that fires cylinder number 1 or 8, depending on which side of the engine you are working on.
- Red Wire: Goes to the coil that fires cylinder number 2 or 7, depending on which side of the engine you are working on.
- Blue Wire: Goes to the coil that fires cylinder number 3 or 6, depending on which side of the engine you are working on.
- Green Wire: Goes to the coil that fires cylinder number 4 or 5, depending on which side of the engine you are working on.
Notes
- Product Type: LS1 D580 remote mount coil relocation bracket kit.
- Coil Compatibility: Fits LS1 D580 / 12558948 ignition coils.
- Harness Length: Includes 36" coil relocation harnesses.
- Engine Coverage: Includes brackets and hardware for 8 coils / one V8 engine.
- Finish Note: Brackets can be left raw, polished, or painted. Test fit before painting or polishing.

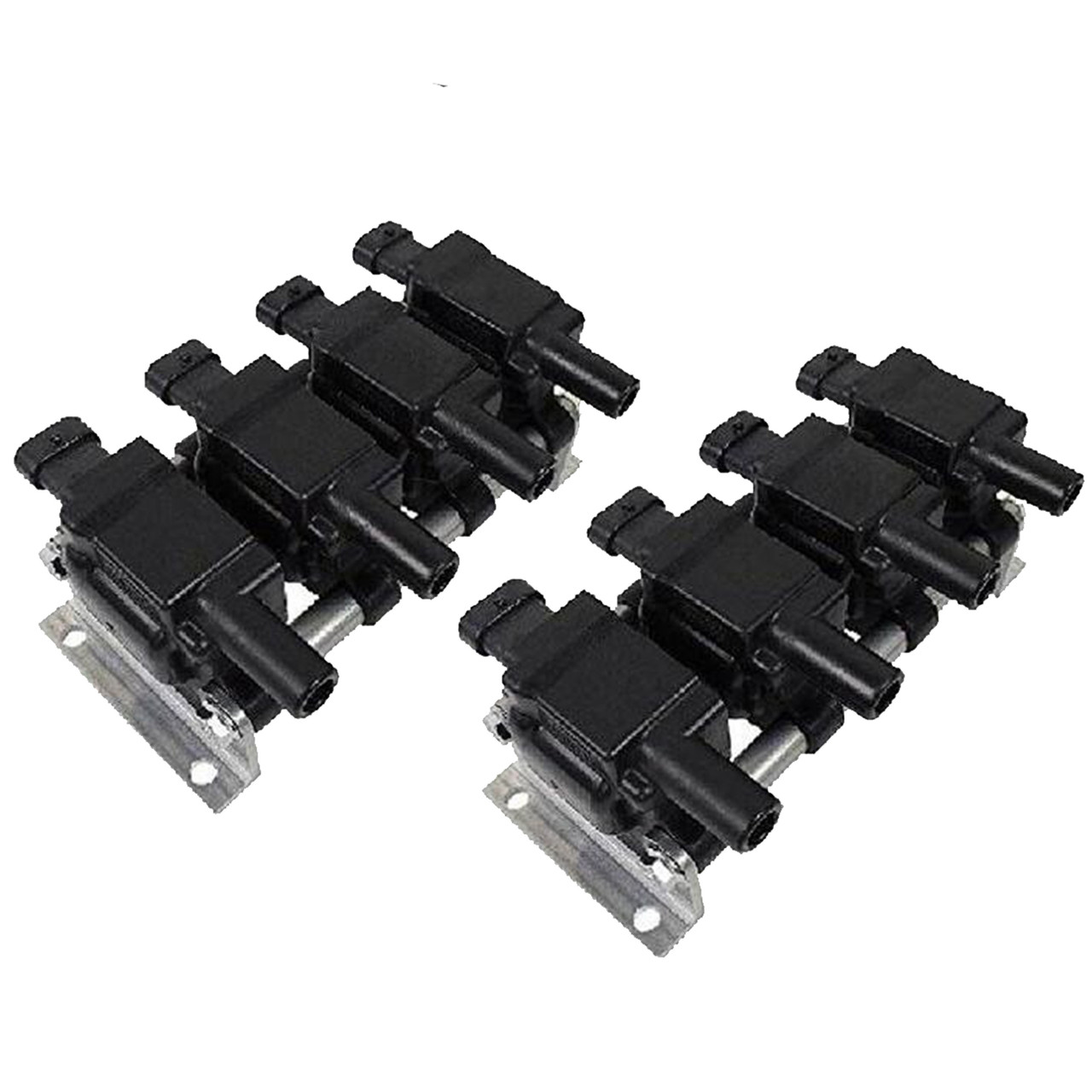

- Coils Included: Coils shown in product photos are not included.
- Recommended Use: LS1 coil relocation, LSX swaps, engine bay cleanup, custom valve cover setups, remote coil mounting, and LS performance builds using D580 coils.
Key Fitments
- LS1 D580 ignition coil applications
- 12558948 ignition coil applications
- LS1 coil relocation applications
- LSX swap remote coil mounting applications
- Custom LS engine bay coil relocation applications
- LS performance builds using D580 / 12558948 coils
- Fitment note: Fits LS1 D580 / 12558948 coils only; coils are not included.
