Product Description

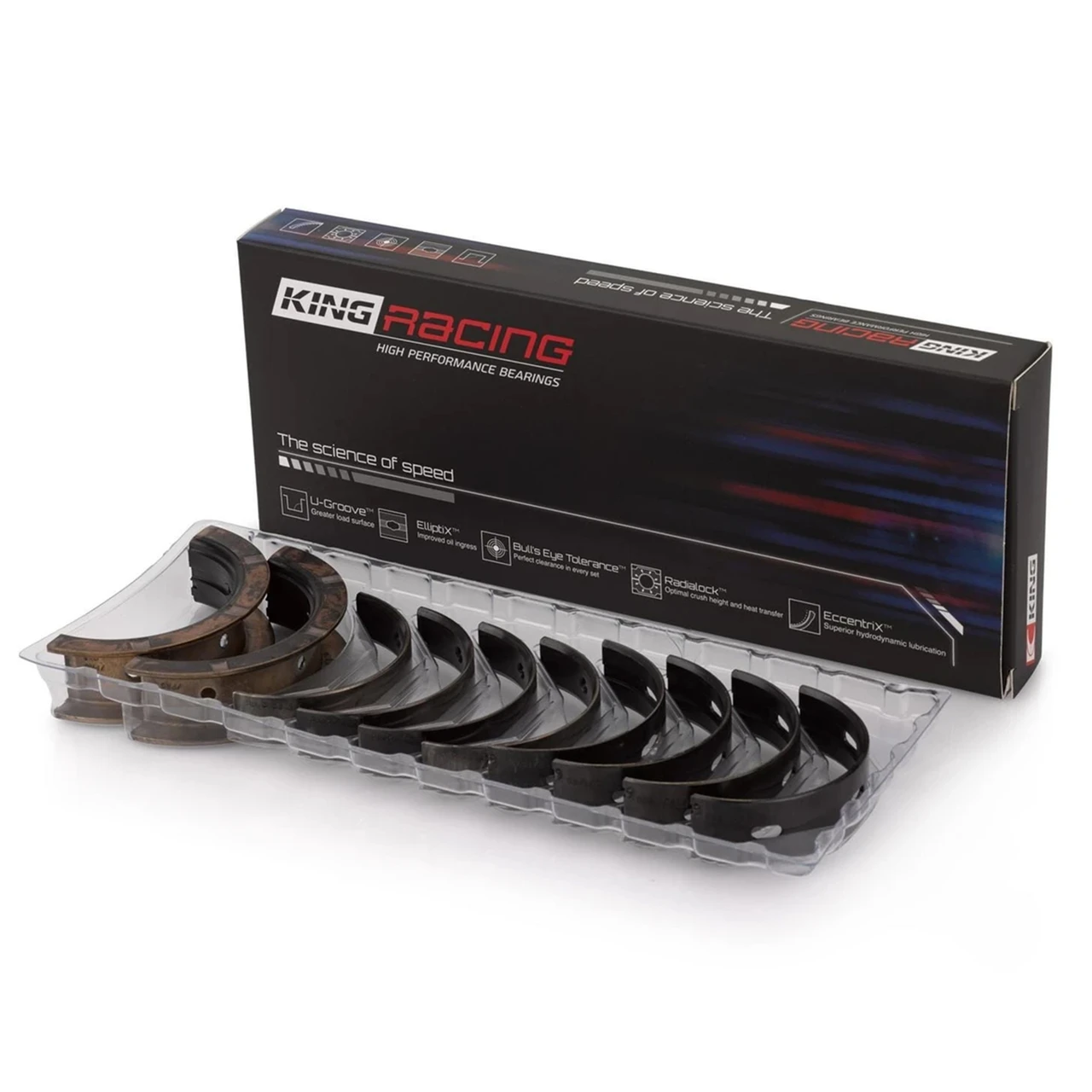

King XP Series Standard Size LS Main Bearing Set
Fits 1997-2013 LS-Based 4.8L, 5.3L, 5.7L, 6.0L and 6.2L Engines – Through 2019 on L96 and 2015 on LS3
Build your LS bottom end with the King MB5013XP standard size main bearing set. Designed for the listed LS-based engines, these XP-Series performance bearings can be used with stock or aftermarket crankshafts. Their enhanced tri-metal construction combines a steel backing, copper-lead bearing material, a nickel barrier and a lead/tin/copper babbitt overlay for stability and durability in demanding engine applications. Controlled wall thickness tolerances of ± .0001" support precise bearing selection, while a narrowed profile accommodates large-radius crankshafts. Enlarged, chamfered oil holes and 3/4 grooving improve oiling, making this King XP main bearing set suitable for compatible performance rebuilds and race engine assemblies.
Key Features & Benefits
- Enhanced Tri-Metal Construction: Combines copper-lead bearing material, a nickel barrier and a lead/tin/copper babbitt overlay over a steel backing. This layered XP-Series construction is designed to provide stability and durability for demanding performance and racing engine applications.
- Standard Size for Stock or Aftermarket Crankshafts: King MB5013XP main bearings can be used with either crankshaft type in the specified LS applications. This set is supplied in standard size for builds requiring standard size main bearings.
- Controlled Wall Thickness: Manufactured with wall thickness tolerances of ± .0001". This tight dimensional control supports consistent bearing thickness when assembling the crankshaft and main bearing system in a compatible LS engine.
- Narrowed for Large-Radius Crankshafts: Features a narrowed bearing profile to accommodate large-radius crankshaft configurations. This design supports compatibility with performance crankshafts while retaining suitability for the listed stock crankshaft applications.
- Oil Hole and Groove Design: Enlarged, chamfered oil holes work with 3/4 grooving to improve oiling. These features support oil delivery through the main bearing assembly in the specified LS engine applications.
Key Fitments
- 1997-2013 LS-Based Engines 4.8L 5.3L 5.7L 6.0L 6.2L
- Fits through 2019 on L96 and 2015 on LS3
Fits Engine Codes:
- LS1 LS2 LS3 LS6 L99 LSA L92 L9H L94 L76 L77 LY6 L96 LFA LZ1 LY5 LMG LMF LH6 LC9 LY2 L20 L33 LQ4 LQ9 LR4 LM7 L59 LS4 LH8 LH9
