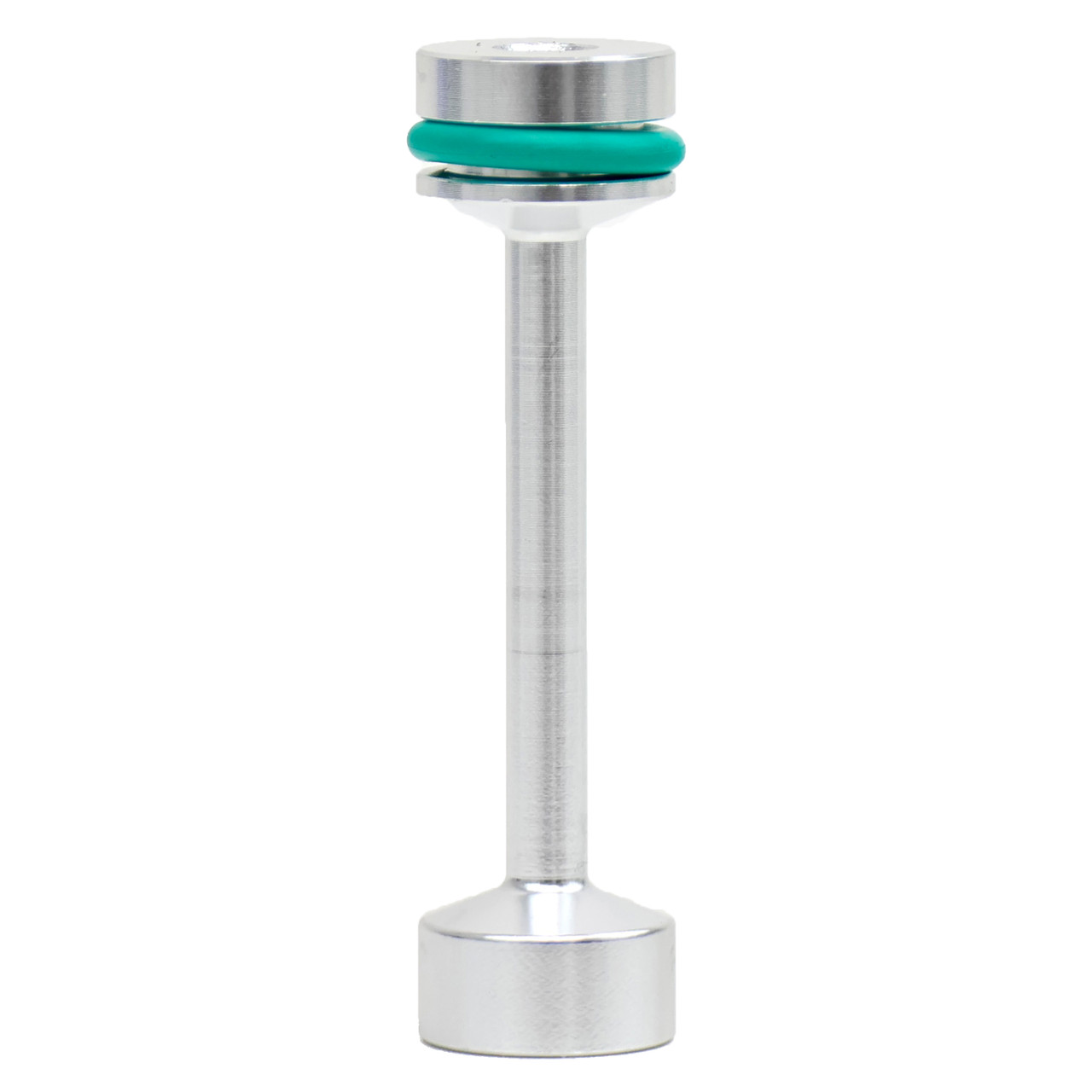

Michigan Motorsports LS Billet Aluminum Oil Diverter Barbell – Precision Fit Upgrade
Fits Gen 3 & Gen 4 LS Engines 4.8L 5.3L 5.7L 6.0L 6.2L 7.0L
Upgrade the weak factory plastic oil diverter barbell with this precision-machined billet aluminum replacement designed to dramatically improve oil system integrity and engine protection. The OEM plastic barbell can allow excessive clearance—approximately .020” too loose—permitting contaminants as large as 500 microns to bypass filtration and flow directly to critical engine components.
This billet aluminum version is engineered with approximately .001” clearance, limiting particle bypass to roughly 20–25 microns—matching the filtration range of most quality oil filters. That means cleaner oil reaching your cam bearings, lifters, crankshaft, and rod bearings. Combined with improved flow characteristics and service-friendly design, this is a must-have reliability upgrade for any serious LS build.
Key Features & Benefits
- Precision Billet Construction: CNC-machined aluminum body with approximately .001” clearance dramatically reduces unfiltered oil bypass compared to the factory plastic barbell.
- Enhanced Engine Protection: Limits particle bypass to approximately 20–25 microns, helping protect cam bearings, lifters, crankshaft, and rod bearings from premature wear.
- Improved Oil Flow: Features a 30% smaller shaft diameter to reduce flow restriction while maintaining proper oil routing throughout the engine.
- Service-Friendly Design: Integrated 1/4-20 threaded removal hole allows easy extraction—no more prying or damaging the block during service.
- High-Temperature Viton O-Ring: Replaceable Viton seal provides long-term durability and resistance to heat and oil breakdown in demanding applications.
Compatible Engines
- Fits all GM Gen III & Gen IV LS engines including: LS1, LS2, LS3, L92, LQ4, LQ9 4.8L, 5.3L, 5.7L, 6.0L, 6.2L, 7.0L
- If you are building, refreshing, or modifying an LS engine, this billet oil diverter barbell is a simple but critical upgrade to help safeguard your investment and maintain optimal oil control under both street and high-performance conditions.
Product Videos
Custom Field
Product Reviews
8 Reviews Hide Reviews Show Reviews
-
Quality part
Its machined right to spec so it has to line up perfectly but give a really nice fit and with the good seal im confident of great oil pressure for miles to come
-
Sweet
Good craftsmanship
-
GM sht
Sure beats plastic BS
-
Oil barbell
Very tight fit. Easiest to remove.
-
LS Billet barbel
Great item,fit perfectly.
-
Worked great
Would absolutely recommend to others!
-
Just as advertised.
Fits nicely. No issues.
-
Fits perfect
The first one I ordered was too tight and did not fit, I reached out to technical support and explained the issue and included the I.D. measurement of the oil gallery in my block and (free of charge) Michigan Motorsports sent me a new one specifically for my engine. These guys are great and really care about getting you the right parts. I look forward to shopping with them again.
