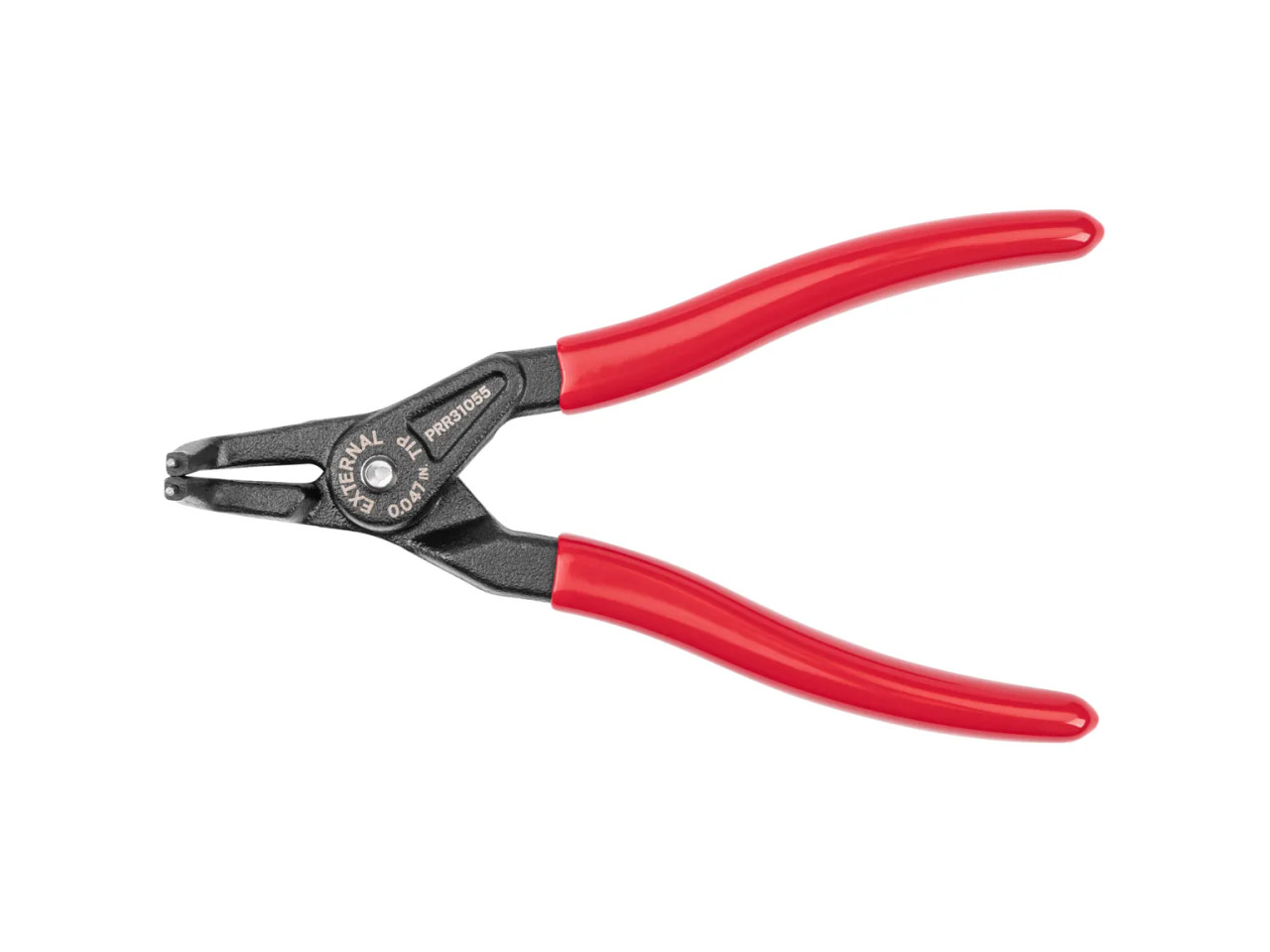

Tekton 5 Inch 90–Degree External Retaining Ring Pliers .047" Tip
These 5-inch external retaining ring pliers are designed specifically for installing and removing external snap rings (circlips) with precision control. Built for durability and ease of use, they feature hardened tips, slim jaws for tight access, and a dedicated single-purpose design.
Key Features:
- For External Clips Only (also known as Snap Rings or Circlips)
- Ring Size Capacity: Shaft OD: 1/2"-7/8" (ASME) - Shaft OD: 10-25 mm (DIN)
- 90-Degree Angled Tips: Outward angled tips apply downward pressure to securely hold the ring.
- Hardened, Crimped-In Tips: Tip hardness 47-53 HRC - Jaw Hardness 37-43 HRC
- Long, Slim Jaws: For tight spaces or deep cavities.
- Spring Loaded, Bolted Joint: Forged handles are permanently bolted together with a hidden, oiled internal spring.
- Clear Laser Markings - Tip size is laser marked on the tool for quick reference.
- Comfortable Vinyl Handle
Specifications:
- Tool Length: 5 in.
- Tip Size: 0.047 in.
- Jaw Angle: 90 degrees
- Retaining Ring Type: External Only
Application Note: These pliers are ideal for installing and removing external snap rings during LS rocker arm trunnion upgrades and similar valvetrain service work.
