Product Description

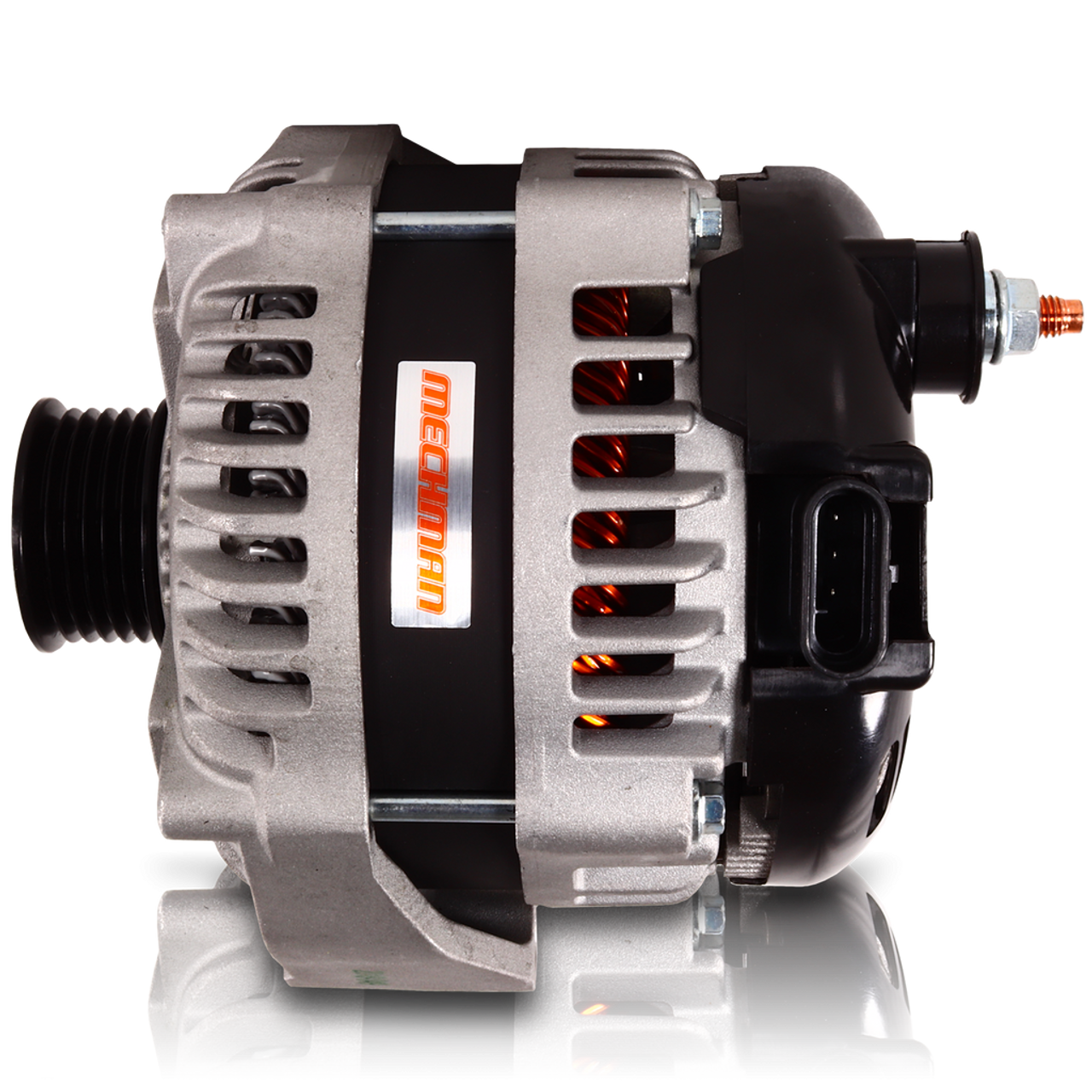

Mechman 400 AMP Elite Series Alternator - Natural Cast Finish
Fits 2005-2013 GM Truck/SUV Silverado Sierra Escalade Tahoe Suburban Yukon Hummer
Not recommended for sustained use above 5,000 RPM engine speed
The Mechman Elite Series 400 Amp Alternator delivers serious output and durability, making it an excellent upgrade for high-demand electrical systems. Featuring advanced 6-phase technology, dual massive rectifier assemblies, and 12 oversized diodes, this unit is engineered for reliable performance in daily-driven applications.
These impressive units produce 200 amps at engine idle speeds and 400+ amps at cruising speeds. This unit comes equipped with a smaller 1.75 inch diameter pulley, and will require a slightly shorter belt for proper belt tension.

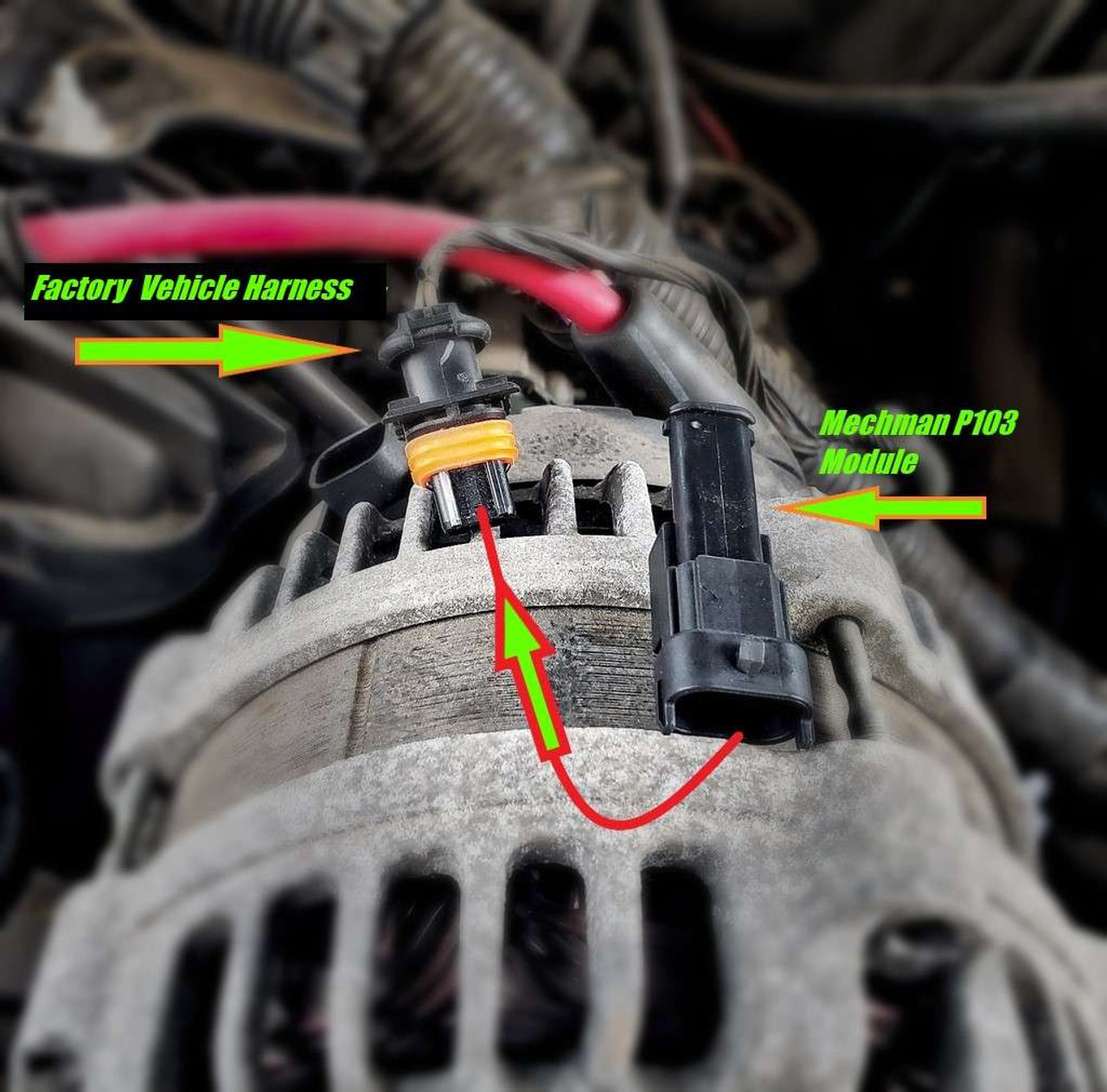

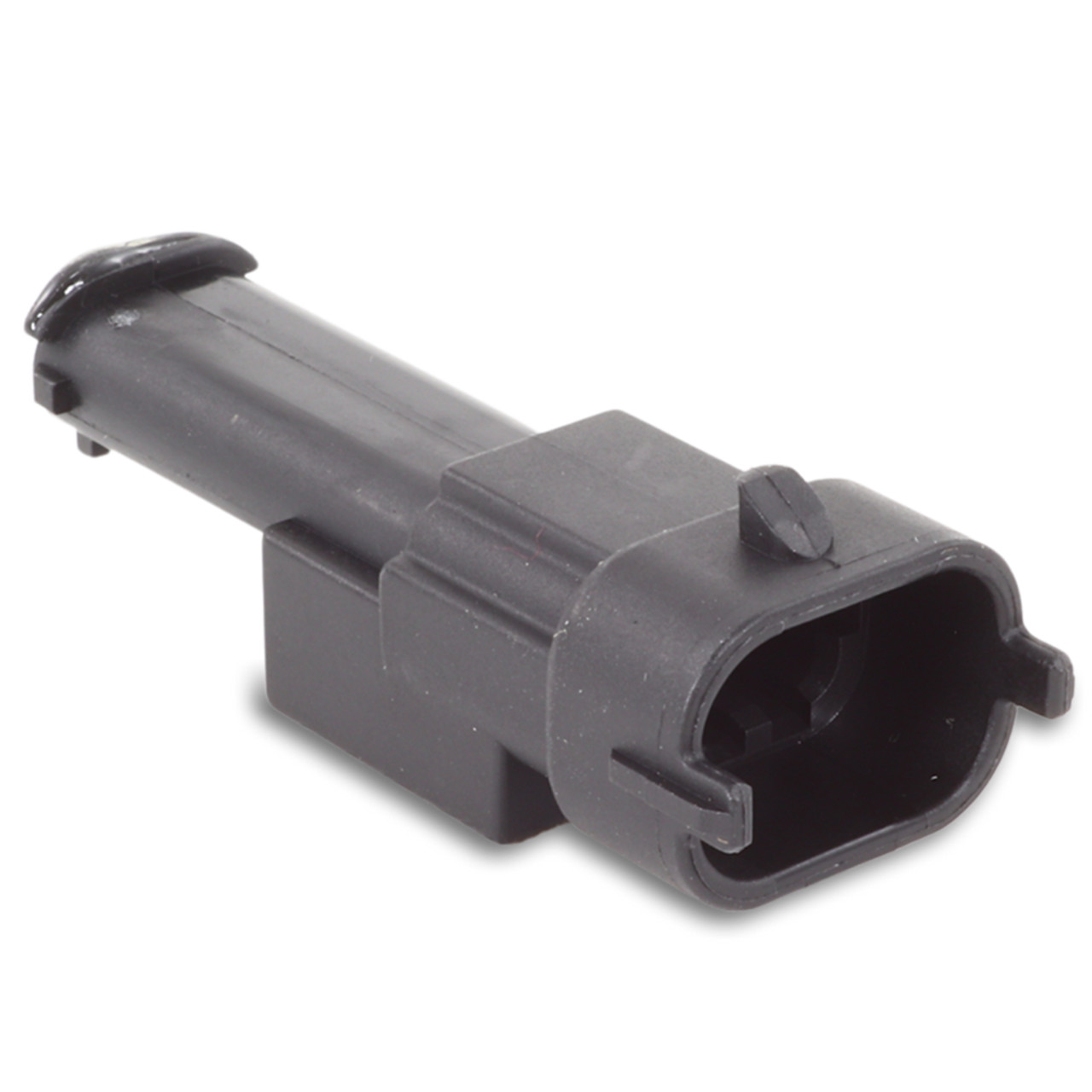

This model features a more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005> GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v switched source, and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness connector. No check battery light, no computer controlled voltage swings. Just the voltage you want, when you want it!
Proudly Made In the USA, Mechman alternators are known for their quality, performance, and reliability.
Key Features:
- 400 amps output at cruising speed
- 200 amps at idle
- 6-phase technology for efficient power generation
- Twin rectifier assemblies with 12 heavy-duty diodes
- 1.75" alternator pulley

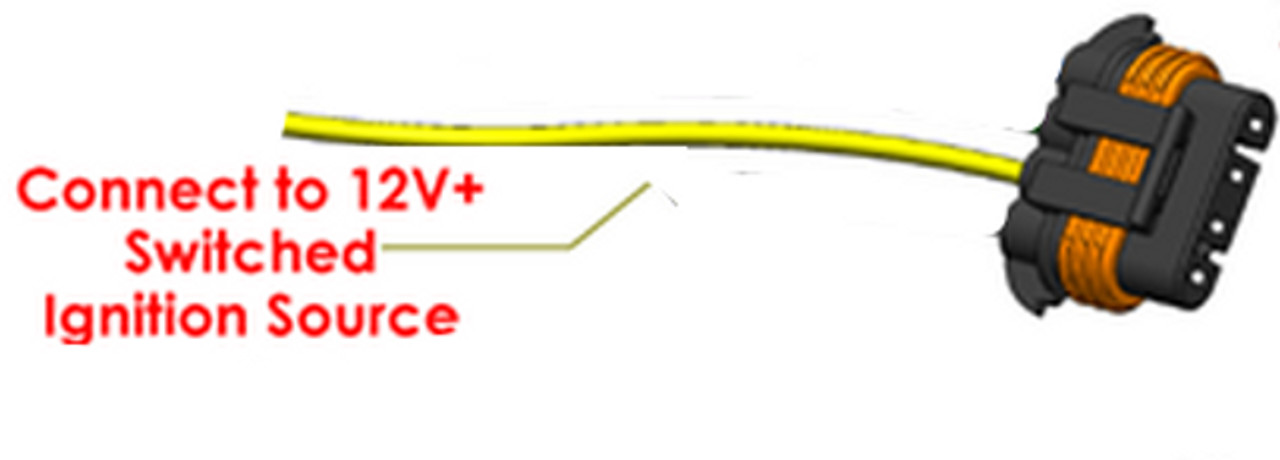

- Simple 1-wire ignition activation (P101 harness included)
- Natural cast finish for OE-style appearance
- Designed for daily driver durability
- Made in the USA
Notes:
- This unit comes equipped with a smaller 1.75 inch pulley, and will require a slightly shorter drive belt for proper belt tension. If you DO NOT use the correct shorter belt, this will result in very low to no output and create extra work load for the alternator.
- Not recommended for sustained use above 5,000 RPM engine speed.
Fitment Guide:
Cadillac
- Escalade 6.0L 6.2L (2005–2013)
Chevrolet
- Avalanche (All Engines) (2005–2013)
- Express Van (2005–2016, 2-pin plug)
- Silverado 1500 (All Gas Engines (2005-2013)
- Silverado 2500/3500 6.0L (2005-2014)
- Suburban (All Gas Engines except 7.4L, 2005-2013)
- Tahoe (All Gas Engines, 2005–2013)
- Trailblazer 5.3L & 6.0L (2007–2009)
GMC
- Canyon 5.3L (2009–2012)
- Envoy 5.3L (2007–2008)
- Savana Van (2-Pin Plug, 2005-2015)
- Sierra 4.3L, 4.8L, 5.3L, (2005-2013)
- Sierra 6.0L (2006-2014)
- Sierra 6.2L (2009-2013)
- Sierra 8.1L (2006-2007)
- Yukon (All Gas Engines except 7.4L, 2005-2013)
Hummer
- H2 6.2L (2008–2009)
- H3 5.3L (2008-2010)
