Product Description

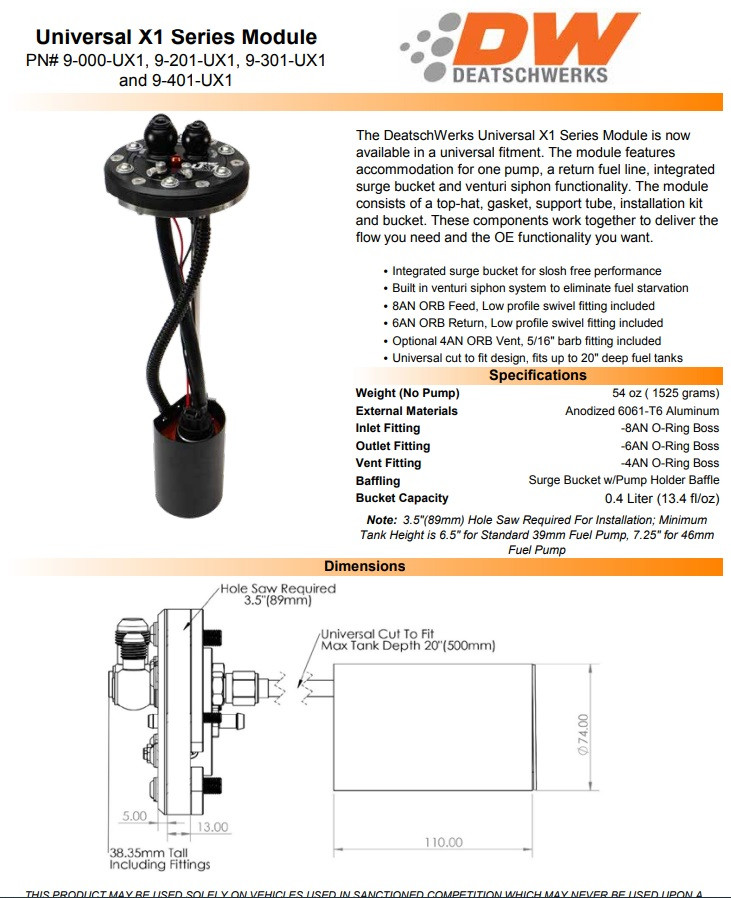

DeatschWerks Universal UX1 Series Module with DW400 Fuel Pump and Bucket
Upgrade your fuel system with the DeatschWerks UX1 Series Universal Fuel Pump Module. Featuring a billet aluminum construction, bucket assembly, and the powerful DW400 fuel pump, this module is designed for high performance, reliability, and easy integration into a variety of applications.
Engineered for universal fitment, the UX1 module delivers a clean, efficient, and durable in-tank fuel pump installation making it an ideal solution for custom builds, retrofits, and vehicles upgrading to modern EFI fueling performance.
Features:
- Complete in-tank fuel solution for custom and retrofit applications

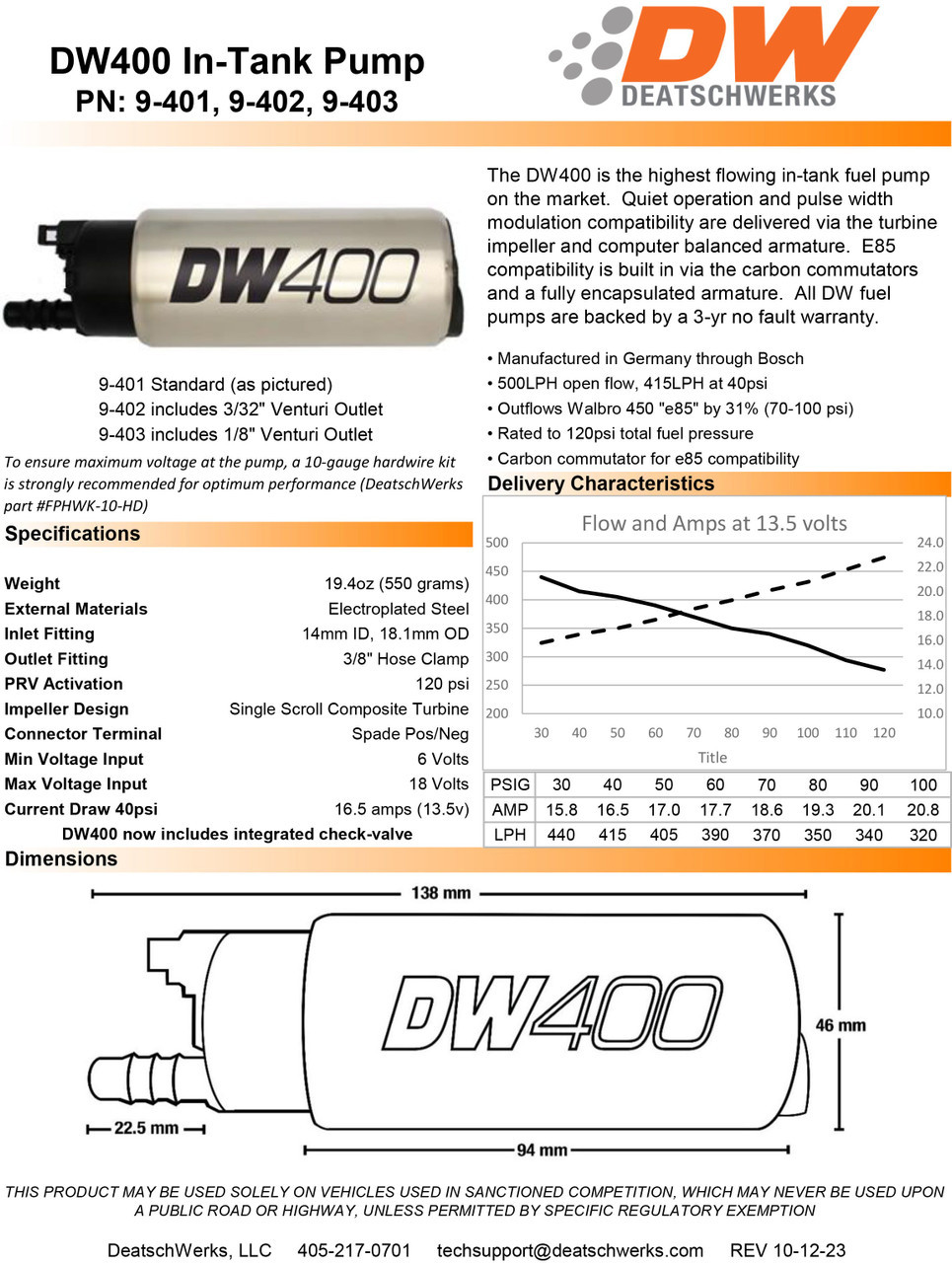

- DW400 high-flow turbine-style pump for quiet and reliable operation. Flows 415LPH @ 40psi
- Integrated slosh control and siphon function for consistent fueling, even at low levels
- Universal cut-to-fit design works with a wide range of tanks up to 20" deep
- Flexible ORB ports for easy plumbing and integration into existing systems
- Durable billet aluminum construction with premium fittings and hardware

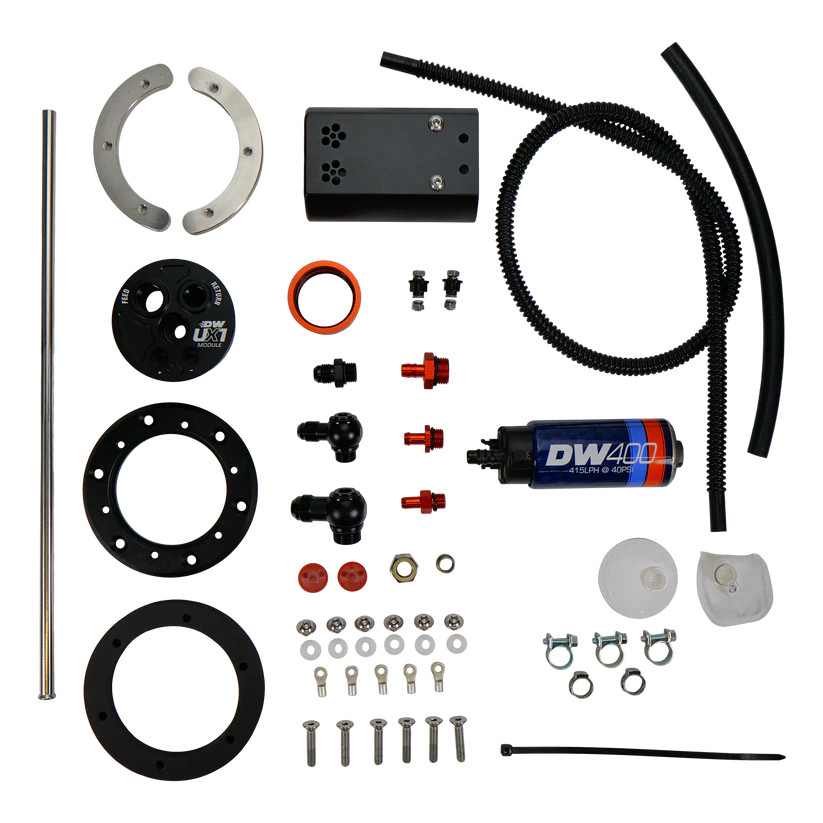

Included Parts:
- Billet Aluminum Top Hat & Mounting Ring
- 2x Stainless Mounting Half Ring
- Sheet Aluminum Bucket with Center Section
- Billet 39mm to 46mm Pump Adapter
- DW400 Fuel Pump with Pre-Filter (46mm)
- 6AN 400mm Stainless Return Tube with Nut & Sleeve
- Assorted 6AN & 8AN ORB Fittings (barb and swivel options included)
- 4AN ORB to 5/16" Barb Vent Fitting
- 12" Rubber In-Tank Rated Hose with Clamps
- 40" x 5/16" Convoluted Siphon Tube
- Electrical Bulkhead Terminals with Hardware
- Ring Terminals & Zip Tie
Notes:
- Requires modifications of the fuel tank (3.5" hole saw recommended)
- Designed for custom applications
- Always ensure fuel tank is emptied and vapor-free before installation

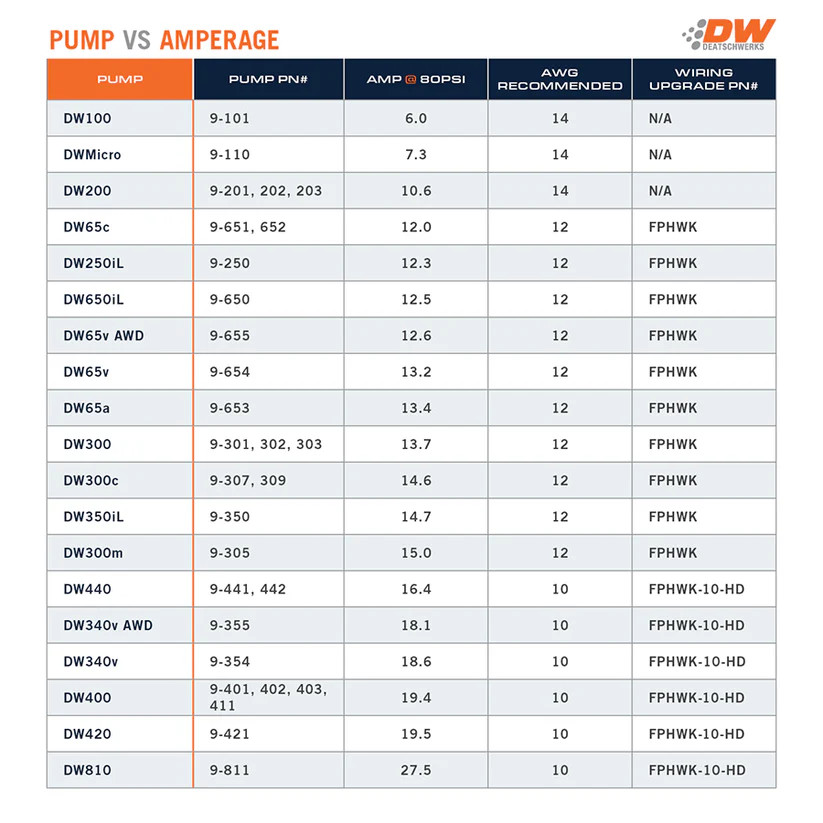

- 10 Gauge wiring strongly recommended for proper performance
