Product Description
DeatschWerks 70mm Billet Fuel Filter Regulator – 10 Micron Filter – 58 PSI
The DeatschWerks DWFFR-X Fuel Filter Regulator is a compact, all-in-one solution that combines high-flow fuel filtration and fuel pressure regulation into a single billet housing. Designed as a modern, high-performance alternative to OEM-style Corvette filter/regulators, the DWFFR-X offers significantly improved flow efficiency and supports high horsepower applications.
Featuring a fully serviceable dual-stage filtration system with stainless steel mesh and integrated magnetic filtration, this unit includes a preset 58 PSI internal regulator and configurable ORB ports to accommodate a wide range of fuel system layouts.
With over 425% greater efficiency than traditional OEM filter/regulators, the DWFFR-X is capable of supporting up to 1600 HP on pump gas, making it an excellent choice for street, strip, and race applications.
Key Features:
- All-in-one fuel filter and regulator assembly
- Preset 58 PSI (4 BAR) internal fuel pressure regulator
- Dual-stage filtration system: 10-micron 304 stainless steel mesh filter with integrated 35mm neodymium magnetic filtration ring

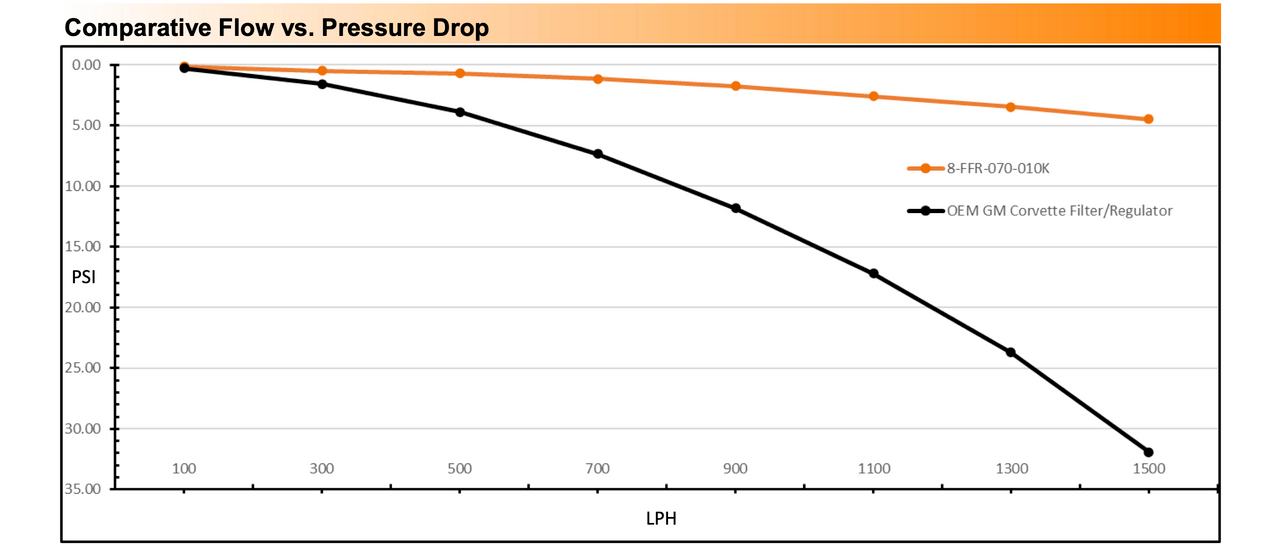

- Over 425% more efficient than OEM Corvette-style filter/regulators
- Supports up to 1600 HP on pump gas (at 1 PSI pressure drop)
- Compact 70mm filter length
- Fully serviceable billet aluminum construction
- ORB ports allow use of AN, barb, or quick-connect fittings
Port Configuration:
- Inlet: 8AN ORB (3/4"-16)
- Outlet: 10AN ORB (7/8"-14)
- Return: 6AN ORB (9/16"-18)
Note: 70mm version does not include fittings
Specifications:
- Housing Material: T6061 Billet Aluminum
- Filter Element Length: 70mm
- Micron Rating: 10 micron
- Flow Rating: 700LPH @ 1 PSI pressure drop
- Working Pressure: 58 PSI (4 BAR)
- Magnetic Filtration: 35mm Neodymium Ring
- Mechanical Filtration: 304 Stainless Steel Mesh
- Weight: 17 oz (482 g)
Note: All horsepower and flow ratings based on the 70mm filter element
