Product Description

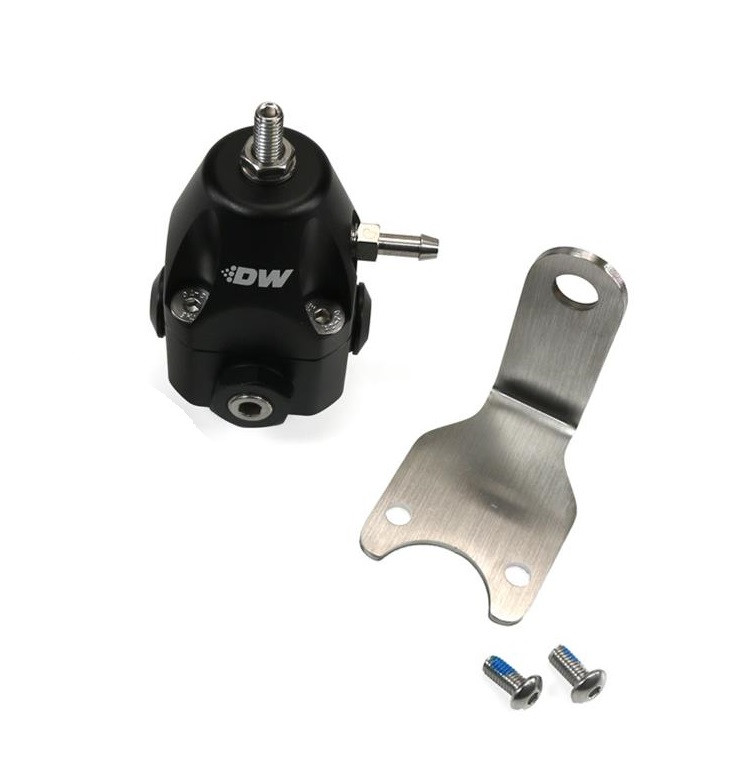

DeatschWerks DWR1000c Adjustable Fuel Pressure Regulator
Includes Mounting Bracket - No Fittings Or Gauge Included
Achieve precise fuel pressure control with the DeatschWerks DWR1000c adjustable fuel pressure regulator. This compact universal-fit regulator is engineered to support EFI engines producing between 250 and 2000 Horsepower.
Specifications:
- Inlet Ports: Dual -6AN ORB ports located on the sides.
- Outlet Port: Single -6AN ORB port at the bottom.
- Pressure Range: Adjustable from 30 to 120 psi.
- Flow Rating: 1000 LPH
- Gasoline, E85 and Methanol Compatible
- External Materials: Anodized T6061 aluminum for corrosion resistance and lightweight durability.
- Hardware and Brackets: Made from 300 stainless steel
- Diaphragm: 35mm Fiber-Viton, compatible with Gasoline, Ethanol and Methanol
- Integrated Gauge Port: 1/8” NPT fitting for easy pressure monitoring.
- Vacuum Reference Port: 3/16” - Barb Fitting included.
What’s Included:
- DWR1000c Adjustable Fuel Pressure Regulator
- Universal Mounting Bracket
Performance Benefits:
- Precision performance and versatility of up to 1,000lph
- Supports up to 2000hp on Ethanol
- Supports up to 2500hp on Gasoline
- -6AN ORB inlets, -6AN ORB outlet
- Compatible with all fuels including methanol and ethanol
- 2 psi per turn precision ball bearing adjustment
- 3 Year Comprehensive Warranty
